Our precision molds support five key industries—consumer electronics, automotive, medical devices, home appliances, and industrial equipment—by delivering accurate, durable, and consistent plastic shells at scale. Unlike generic molds that often cause poor fit, design limitations, excess waste, and rising production costs, our customized solutions are engineered to match each product’s specifications. From complex housings and protective enclosures to lightweight components, we help manufacturers improve efficiency, maintain reliable quality, shorten development cycles, and reduce long-term expenses. Stop overpaying for one-size-fits-all plastic shells—choose precision molds built for your industry and your competitive edge.
When I talk with product teams about mold production, I often hear the same concerns:
A mold is not only a metal tool. It affects part quality, cycle time, material use, and production cost. That is why companies in several industries choose suppliers with practical mold experience and clear communication.
Here are five industries that often work with us.
Automotive companies use molds for many plastic and metal components, such as:
These parts may look simple, but many require tight dimensional control, a clean surface, and stable performance across large production runs.
I once worked with a team producing a vehicle interior component with several clips and ribs on the back. The first design had thin areas that could cause uneven filling. Instead of moving directly to tool production, we reviewed the wall thickness, gate position, cooling layout, and ejection points with the customer.
The final mold design used a more balanced filling path and stronger support around the clips. This helped reduce visible flow marks and made part removal more stable.
Automotive customers often need:
A mold for automotive parts must support the product on the drawing and the production line on the factory floor.
Consumer electronics products usually have compact parts with a high focus on appearance. Common molded components include:
A small surface defect can affect the appearance of the whole product. Weld lines, sink marks, short shots, and ejection marks may become visible after assembly.
When I review an electronics mold project, I pay close attention to:
For example, a wireless device cover may need a smooth outer surface while the inner side contains ribs, bosses, and screw posts. The mold must fill both areas without creating stress marks or deformation.
The customer may also request several surface finishes, such as a smooth texture, fine grain, or a matte effect. Each finish requires suitable steel preparation and careful polishing or texturing work.
For electronics projects, I believe early design discussion saves more time than late repair. A short review before mold machining can reveal problems that would be harder to change after the tool is completed.
Medical device manufacturers use molds for products such as:
These products may require clean surfaces, repeatable dimensions, and controlled production conditions. Some parts are used with liquids, tubes, filters, or other small components, so a small dimensional variation can affect assembly.
A medical mold project usually needs clear documentation. The customer may ask for:
I do not treat a medical mold like a general-purpose tool. The product function, material choice, tolerance, and cleaning needs must be discussed before production starts.
A practical example is a small tube connector. Its outside shape may be easy to produce, but the inner passage needs proper dimensions and a smooth finish. If the gate, core pin, or cooling design is not suitable, the part may show deformation or fail during assembly.
Good communication matters here. When a customer raises a concern, I prefer to show the cause with drawings, inspection results, or trial samples. This gives the project team a clear basis for the next decision.
Packaging companies often need molds for:
Packaging molds usually face high output requirements. The tool needs to support short cycle times while keeping the parts stable and consistent.
Thin-wall packaging can be challenging because the material cools quickly during filling. The mold design may need:
I have seen projects where a cap looked acceptable during the first trial but showed slight ovality after cooling. The issue was not only the cavity shape. Cooling balance and material shrinkage also affected the result.
A useful mold review covers both the part and the production process. I ask how the customer plans to run the tool, what material will be used, what cycle time is expected, and how the finished part will be inspected.
Packaging customers also care about mold maintenance. If a tool contains many cavities, a small issue in one cavity can create sorting work and production delays. Clear cavity identification and accessible maintenance points make daily operation easier.
Home appliance and electrical product manufacturers use molds for:
These components may need a mix of appearance, strength, heat resistance, and assembly accuracy.
A refrigerator handle, for example, may include mounting bosses, internal ribs, and a textured outer surface. The mold must help create a part that looks clean and remains stable during installation.
Electrical housings may also need space for:
During design review, I check whether the ribs are too thick, whether the bosses have enough support, and whether the ejection system could leave marks on visible surfaces.
For one appliance housing project, the customer wanted to reduce part weight without changing the outside size. We reviewed the inner ribs and support points rather than simply reducing the wall thickness. This approach helped protect the assembly areas while reducing unnecessary material in selected sections.
The product types are different, but the customer needs are often similar.
They want a supplier that can:
My own view is simple: mold quality starts before steel cutting. A supplier may have advanced equipment, but the project still needs careful design review, accurate data, and honest communication.
A useful cooperation process usually includes these steps:
The right mold depends on the product, material, output, tolerance, and production plan. Automotive parts may need strong tooling for long production runs. Electronics may focus on surface quality. Medical components may need controlled documentation. Packaging may require balanced filling and fast cycles. Home appliances may combine appearance with structural strength.
When I understand these differences at the start, I can help the customer choose a mold design that fits the actual production needs rather than only the drawing.
I often see companies pay more for plastic shells that look almost the same as standard models. The extra cost may come from a familiar supplier, a complex quotation process, or features that the product does not need.
A generic plastic shell should match the product’s actual use. It should protect the internal parts, support assembly, fit the design, and meet the required quality level. Paying for unused features can make the project harder to manage without improving the end product.
I start by checking five points:
This simple review can show where the cost comes from.
A small electronic device used indoors may not need the same plastic housing as equipment placed outdoors. A thick wall, high-grade material, or special coating may be useful in some cases, but unnecessary in others. The right choice depends on the working environment, expected service life, heat level, impact risk, and appearance requirements.
I also compare custom tooling with available standard options. A custom shell can support a precise design, but tooling costs may not suit a small production run. A standard shell may offer a practical fit when the product does not require a unique shape.
Material selection also affects the quotation. ABS, PC, PP, and other plastics have different properties and costs. I do not recommend choosing by price alone. I match the material to the product’s needs:
The shell should also support efficient assembly. If workers need extra screws, manual trimming, or repeated adjustments, the lower unit price may not reduce the total project cost. A better design can reduce handling steps, improve fit, and make inspection easier.
A common example is a small control box for indoor equipment. The buyer may request a thick shell, a premium surface finish, and several mounting options because these features were included in an earlier model. After reviewing the use conditions, the team may keep the required mounting points and remove unused details. The product still protects the internal parts, while the design becomes easier to produce.
Quotation details deserve the same attention. I ask suppliers to separate:
A single total price can hide the reason behind a high quotation. A clear breakdown makes supplier comparison easier and helps identify which features affect the budget.
Samples should be checked before a larger order. I look at the fit, wall thickness, screw posts, clips, surface marks, color consistency, and assembly time. A shell that looks acceptable in a photo may still create problems during installation.
I also prefer a supplier who asks useful questions before quoting. The supplier should understand the product’s size, operating conditions, target volume, tolerance needs, and delivery plan. A quick low quote may not be helpful if it is based on incomplete information.
There is no need to remove every special feature. The better approach is to keep features that support safety, function, assembly, or product appearance, while reviewing details that add cost without serving a clear purpose.
When I review a plastic shell project, I use this process:
The goal is not to choose the cheapest shell. The goal is to choose a shell that fits the product, the production plan, and the budget without paying for unused details. A clear design brief and an open quotation can help me avoid generic plastic shells that cost more than they need to.
A standard mold can look like a simple way to control production costs. In practice, a poor fit may create flash, uneven walls, weak edges, or parts that need extra trimming. These problems add labor, material waste, and delays to the production plan.
I have seen many teams focus on the mold price alone. The better question is: will the mold match the part, the machine, the material, and the expected production volume?
A custom mold can offer a closer fit and a clearer cost path when the product has special dimensions, tight assembly needs, or a shape that standard tooling cannot support.
A better fit starts with the product
I begin by reviewing the part itself, not just the outer shape. Several details affect the mold design:
A part may look balanced on a screen but still be hard to release from the mold. A sharp internal corner can increase stress. A thin wall can cool unevenly. A deep cavity may need a different ejection plan.
When I review these points before tool design, I can reduce design changes later. This helps the mold support the actual production process instead of matching only a drawing.
Custom design can reduce material waste
A mold that does not match the product may cause short shots, sink marks, warping, or excess flash. Each rejected part uses material, machine time, and operator attention.
Custom tooling allows the cavity, runner layout, cooling channels, and ejection system to be planned around the product. The result depends on the design, material, and process settings, so no supplier should promise a fixed reduction without reviewing the project data.

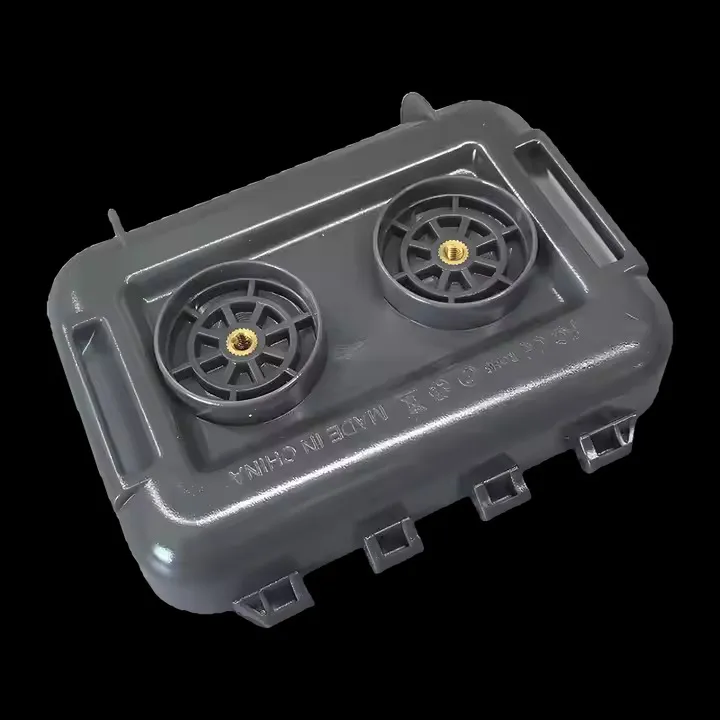

A practical example is a small enclosure with several snap-fit points. A standard mold may produce the outer shell, but the snap areas can deform during ejection. A custom mold can place support features and ejectors around those areas. This may reduce rework and help the parts connect more consistently.
The goal is not to add features for the sake of complexity. The goal is to place the right features where the product needs them.
Lower costs come from the full production cycle
The purchase price of a mold is only one part of the tooling budget. I also look at:
A low-cost mold may suit a short trial run. It may not suit a project that requires steady production for several years. A more suitable mold structure can cost more at the start while reducing repeated adjustments and repair work later.
The opposite can also be true. A highly complex mold may not make sense for a product with a small order volume. A simpler design may meet the part requirements with less tooling expense.
I prefer to compare tooling options against the expected production plan rather than judge the quote by price alone.
A clear custom mold process
I use a step-by-step review to keep the project practical.
1. Share the product information
Provide a 2D drawing, 3D file, material details, estimated volume, and any tolerance requirements. Photos of a current part can also help when a replacement mold is needed.
2. Review mold feasibility
The design team checks draft angles, wall thickness, parting lines, undercuts, shrinkage, and ejection points. This stage can reveal changes that may improve production without changing the product’s main function.
3. Choose the mold structure
The mold base, steel type, cavity number, runner system, cooling layout, and ejection method should match the project. A single-cavity mold may fit a low-volume order. Multi-cavity tooling may suit larger output if the product and machine support it.
4. Confirm the design
A mold flow review or design review can help identify filling and cooling concerns. I also confirm critical dimensions before machining begins. This reduces the chance of building a tool around unclear information.
5. Machine and assemble the mold
The mold components are produced, fitted, and checked. The level of inspection should match the required part tolerance and production use.
6. Run a sample trial
Trial parts show how the mold performs with the selected material and machine settings. I check dimensions, appearance, flash, ejection, filling, and assembly points.
7. Adjust where needed
Some projects need small changes after the first trial. A clear record of each adjustment helps both sides understand the reason and expected result.
8. Prepare production support
The project should include mold drawings, maintenance guidance, spare wear parts, and basic process notes. These materials help the production team use and maintain the tool correctly.
Material choice affects the cost plan
Different mold steels offer different levels of wear resistance, polishability, corrosion resistance, and service life. The right choice depends on the plastic material, output volume, surface requirements, and working conditions.
For a small run, a suitable pre-hardened steel may be enough. A high-volume project using glass-filled material may need a stronger option for areas exposed to wear. Products that require a polished appearance may need a material and machining plan that supports the target finish.
There is no useful one-size-fits-all answer. I normally compare the expected output with the mold material before making a recommendation.
Good communication prevents avoidable changes
Many mold issues begin with missing information. A supplier may not know that a part must fit a specific electronic board, pass a visual inspection, or connect with an existing component.
I ask customers to share:
This information gives the mold designer a more complete view of the project. It also helps separate essential requirements from preferences that can be adjusted if the budget changes.
Custom molds work best when the design reflects the real product, not just a basic shape. A closer fit can support smoother production, reduce avoidable waste, and make the cost plan easier to understand. The right solution may be a simple single-cavity tool, a multi-cavity system, or a modified design built around an existing mold base.
I recommend comparing the full process: design, machining, trials, production, maintenance, and part quality. That view gives a more useful answer than choosing the lowest mold quote.
Plastic parts often look simple on the drawing. The mold behind them is not.
Small issues in mold design can lead to flash, sink marks, short shots, uneven walls, difficult ejection, or repeated production stops. I have seen projects lose time because the mold discussion started too late, after the product shape had already been fixed.
A better result starts with the part, the plastic material, and the production plan working together.
Start with the product and production needs
I begin by checking how the plastic part will be used.
A thin cover for an electronic device may need a clean surface and tight fit. A food container may need smooth edges, stable dimensions, and repeated opening and closing. An automotive clip may need strength, flexibility, and reliable assembly.
These needs affect the mold structure.
Before mold design begins, I confirm:
This step helps prevent a common mistake: designing a mold that can make the part, but does not suit the planned production process.
Choose a plastic material that matches the part
Different plastics behave differently during injection molding.
ABS can provide a balance of strength and appearance for housings and consumer products. PP is often used for containers, caps, and living-hinge designs. PC may suit parts that need impact resistance and a clear appearance. PA can support mechanical parts, though moisture and shrinkage need attention.
The material affects:
I do not treat material selection as a separate task from mold design. A material with higher shrinkage may need different dimensions and compensation. A glass-filled plastic can create more wear on mold components. Transparent plastic may need a smoother cavity surface and careful handling.
The mold should support the chosen material, not force the material into an unsuitable design.
Build the mold around stable part design
A stable plastic mold usually starts with a stable product design.
Uniform wall thickness helps reduce warping and sink marks. Proper draft angles make ejection easier and protect the cavity surface. Rounded corners can improve material flow and lower stress compared with sharp internal corners.
I pay close attention to:
A common example is a reusable plastic container. If the base is much thicker than the side wall, the thicker area may cool at a different rate and show sink marks. A more balanced wall design, a suitable gate position, and better cooling can help the part form more evenly.
Plan the gate, runner, and cooling system
Material flow has a direct effect on the finished part.
The gate position should support balanced filling and reduce visible marks where appearance matters. Multi-cavity molds need runner layouts that help each cavity receive a similar amount of material. Poor balance can create different filling times and part weights across the same mold.
Cooling deserves the same level of attention. The mold may fill correctly and still produce warped parts when cooling channels are too far from key surfaces or poorly arranged.
I review:
Vents are easy to overlook. Trapped air can cause burn marks, short shots, or rough areas. Small venting changes may solve a defect that appears to be an injection machine problem.
Use suitable mold materials and components
Mold steel should match the production plan.
A prototype mold may have different material needs from a mold planned for long production runs. Wear resistance, corrosion resistance, surface finish, and maintenance access all affect the choice.
The mold design may include:
I prefer replaceable wear parts in areas that may need service. This can make future repairs more practical and reduce the need to rebuild a larger mold section.
Component quality matters too. Poor alignment can cause uneven wear, parting-line flash, or damage during repeated cycles.
Test the mold with a clear inspection plan
A trial run should produce more than a few sample parts.
I check the mold through several stages:
The inspection report should include actual measurements, photos, material details, machine settings, and any changes made after the trial.
For a small electronics housing, a good test may include checking screw bosses, clips, visible surfaces, and assembly with the matching cover. A part that looks acceptable by itself may still fail when assembled.
Choose a mold partner that communicates clearly
Price matters, but it does not tell the full story.
I look for a supplier that can explain the mold structure, point out design risks, share inspection records, and discuss maintenance needs in plain language. Clear communication helps when a change affects cost, delivery, part quality, or mold life.
Useful questions include:
A reliable plastic mold is not created by machining alone. It comes from product review, suitable materials, balanced flow, controlled cooling, accurate assembly, and practical testing.
When I plan a new injection mold, I focus on how the mold will perform during real production, not only how it looks in a drawing. That approach helps reduce avoidable defects and gives the manufacturer a clearer path from design to repeatable plastic parts.
Contact us today to learn more Kama Liu: sale@hwplasticparts.com/WhatsApp +8615069372818.
References
John P Beaumont 2019 Runner and Gating Design Handbook
Robert A Malloy 2010 Plastic Part Design for Injection Molding
Tim A Osswald Lih-Sheng Turng Paul J Gramann 2008 Injection Molding Handbook
J Harry Dubois and Wayne I Pribble 2017 Plastics Mold Engineering Handbook
Bryce M E 1998 Plastic Injection Molding Manufacturing Process Fundamentals
ASM International 2003 ASM Handbook Volume 15 Casting and Mold Materials
