Need precision? Our custom non-standard parts are manufactured to tight tolerances as close as ±0.5 mm, helping ensure reliable fit, consistent performance, and smooth integration into your application. From unique prototypes to specialized production components, we combine skilled manufacturing, careful quality control, and flexible customization to meet demanding specifications. When standard parts are not enough, our tailored solutions deliver the accuracy and dependability your project requires.



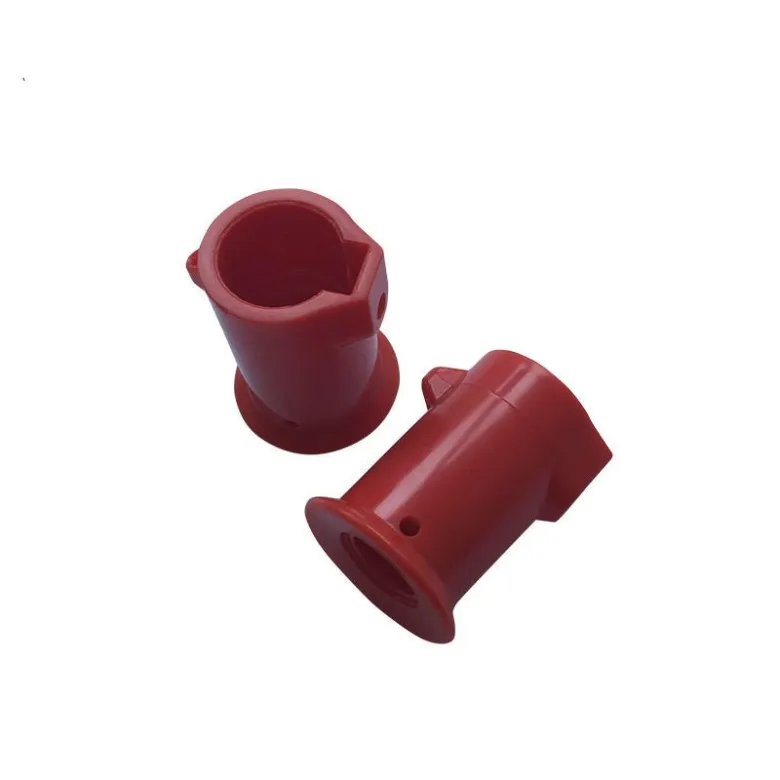

Need Precision? Our Custom Parts Hold ±0.05mm Tolerance



When I order custom parts, a small dimensional error can create a large assembly problem. A hole may not align, a shaft may bind, or two mating parts may require extra fitting. A stated tolerance of ±0.05 mm gives the project a clear target, but the result depends on the drawing, material, machine, finishing process, and inspection method.

I treat tolerance as a manufacturing requirement, not just a number on a quotation.

A dimension of 20.00 mm with a tolerance of ±0.05 mm allows a finished size from 19.95 mm to 20.05 mm. That range must match the part’s function. A non-critical outer surface may not need the same control as a bearing seat or locating hole.

My process starts with the technical drawing.

I check:

  • Nominal dimensions and tolerance values
  • Material type and hardness
  • Critical holes, slots, threads, and mating surfaces
  • Surface finish requirements
  • Heat treatment or coating needs
  • Quantity and expected repeat orders
  • Inspection method and report requirements

This review helps separate functional dimensions from general dimensions. When every feature receives a tight tolerance without a clear reason, machining time and inspection work may rise without improving the part.

Material choice also affects dimensional control. Aluminum, stainless steel, carbon steel, brass, and engineering plastics respond differently to cutting heat, clamping force, and temperature changes. A thin aluminum plate may move after machining. A long steel shaft may show size changes when its temperature shifts during inspection. I account for these conditions before selecting the process.

The machining method depends on part geometry.

CNC milling suits blocks, plates, housings, pockets, and complex profiles. CNC turning fits shafts, pins, bushings, and round components. Grinding may be needed for certain bearing fits or surfaces that require tighter control. Wire EDM can help with thin slots and hard materials, while EDM drilling can produce small holes in suitable applications.

A ±0.05 mm requirement is often achievable with a suitable CNC process, but I do not apply the same method to every part. A simple turned pin and a thin milled bracket may show different stability even when they carry the same tolerance value.

Tool condition matters as well. A worn cutter can change a pocket size, leave poor surface marks, or create an uneven edge. I use tool checks during production and adjust the machining plan when tool wear may affect a critical feature.

Inspection takes place during and after production.

For a typical precision part, I may use:

  • Calipers for general dimensions
  • Micrometers for outside diameters and thickness
  • Bore gauges for internal diameters
  • Height gauges for step and location measurements
  • Thread gauges for selected threaded features
  • CMM inspection for complex profiles and hole positions

The inspection tool must suit the tolerance. A caliper may be useful for a general dimension, but it is not the right choice for every ±0.05 mm feature. Measurement technique, temperature, part cleanliness, and operator handling can all influence the reading.

A practical example is a stainless steel spacer used with a bearing assembly. The drawing may specify a 25.00 mm outside diameter with ±0.05 mm tolerance and a controlled internal diameter for the bearing fit. The outside diameter may allow a wider production range, while the internal diameter requires closer attention. Treating both features the same way could add cost without improving assembly performance.

Clear drawings reduce questions and prevent avoidable rework. I recommend marking critical dimensions with a note, fit class, or inspection requirement. If a hole must align with another component, the drawing should show the hole position tolerance, not only the hole diameter.

A useful request may include:

  • 2D drawing in PDF or another readable format
  • 3D model when the shape is complex
  • Material and grade
  • Quantity
  • Surface treatment
  • Critical tolerance areas
  • Packaging or marking instructions
  • Inspection report requirements

When the drawing is incomplete, I ask about the part’s function before suggesting a tolerance. The same 0.05 mm requirement may be suitable for one component and unnecessary for another. The right question is not only “Can this size be made?” It is also “Which dimensions control the assembly?”

Sample approval can help when the part is new or the geometry is difficult. A sample allows the fit, surface condition, and measurement method to be checked before a larger batch is produced. The sample should be inspected against the same drawing used for production.

I also separate cosmetic expectations from dimensional requirements. A part can meet its dimensional tolerance while showing minor tool marks that are normal for the selected process. If the surface must have a specific finish, that requirement should be written on the drawing or purchase document.

A reliable tolerance plan connects four points:

  • The function of the part
  • The selected material
  • The machining process
  • The inspection method

This approach helps reduce fitting problems and keeps the specification practical. If you need custom machined parts with a ±0.05 mm tolerance, send the drawing, material, quantity, and critical feature notes. I can review the requirements and identify which dimensions need direct process and inspection control.


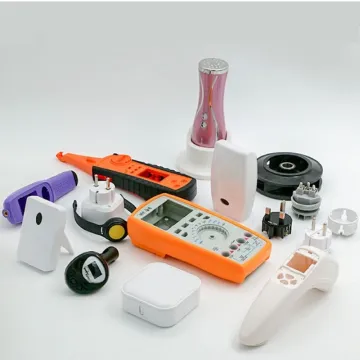

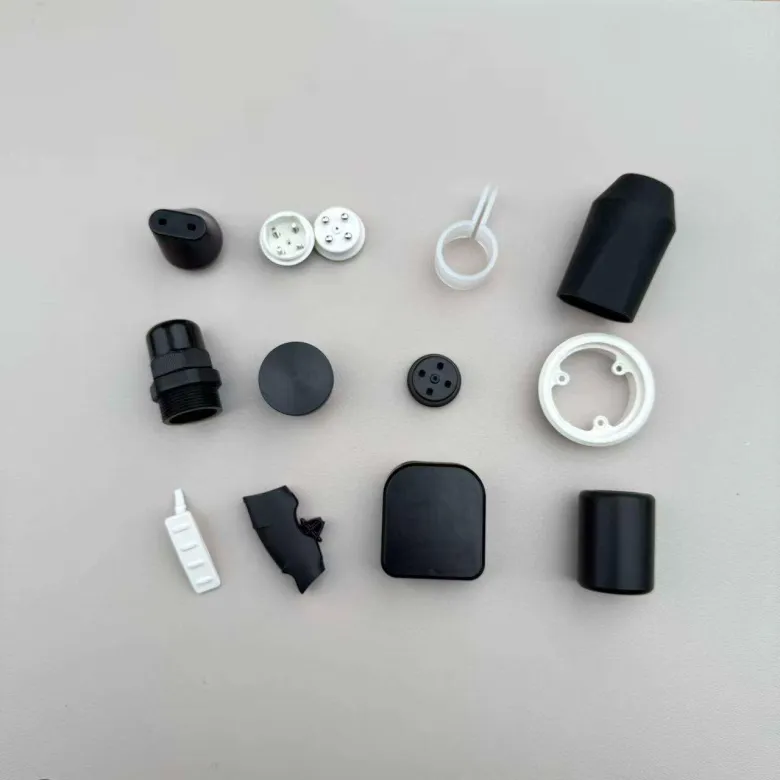

Custom Parts Made to a ±0.05mm Standard



A custom part can look simple on a drawing and still cause problems during assembly. A hole may be slightly off-center. A shaft may fit too tightly. Two parts made from different batches may not match as expected.

For many projects, a tolerance of ±0.05 mm provides a practical target. It means the finished size can be up to 0.05 mm above or below the nominal dimension. For a 20.00 mm feature, the acceptable range is 19.95 to 20.05 mm.

I treat this tolerance as a production requirement, not as a marketing phrase. The drawing, material, part shape, surface finish, and inspection method all affect the result.

Start With a Complete Drawing

I need more than a basic 3D model to review a custom part properly.

A useful drawing should include:

  • Nominal dimensions
  • Tolerance requirements
  • Material grade
  • Surface finish
  • Thread details
  • Hole sizes and positions
  • Edge treatment
  • Heat treatment requirements
  • Areas that need closer control
  • Quantity and expected production schedule

If the drawing shows ±0.05 mm on every feature, the manufacturing cost may rise without improving the part’s function. I usually recommend marking only the dimensions that affect assembly, movement, sealing, or alignment.

A general tolerance can cover less critical features. A tighter tolerance can be assigned to the areas that control performance.

Check Whether the Design Fits the Process

The same tolerance may be handled differently across materials and manufacturing methods.

CNC milling can suit many aluminum, steel, brass, and engineering plastic parts. Turning is often a good fit for shafts, pins, bushings, and other round components. Grinding may be needed when a surface requires closer size control or a specific finish.

A thin wall can move after machining. A deep pocket can be harder to measure accurately. Heat-treated steel may change size during processing. Plastic parts may expand or shrink as temperature and moisture change.

I review these factors before production starts. A small change to wall thickness, datum location, or machining order may make the part easier to produce while keeping the required function.

Set Clear Datums

A tolerance has meaning only when the measurement reference is clear.

When I review a drawing, I look for the main datum surfaces and the features that control part location. If a hole position is measured from an unstable edge, two inspection reports may show different results even when the part has not changed.

A clear datum plan can help control:

  • Hole position
  • Flatness
  • Parallelism
  • Perpendicularity
  • Concentricity
  • Distance between mating features

For a mounting plate, the bottom face may serve as the primary datum. One side edge can control the horizontal position, while another edge controls the vertical position. This gives the machine operator and inspector the same reference system.

Use Inspection Data That Matches the Requirement

A ±0.05 mm requirement needs an inspection method that can support the stated accuracy.

Depending on the feature, I may use:

  • Calipers for general dimensions
  • Micrometers for closer size checks
  • Pin gauges for hole verification
  • Height gauges for position checks
  • CMM inspection for complex geometry
  • Optical measurement for small or delicate features
  • Surface testers for finish requirements

The tool must match the feature. A caliper may be suitable for a rough outside dimension, but it may not provide enough information for a close bore or a precise hole pattern.

The inspection report should show the nominal size, measured value, allowed range, and result. A simple report helps both sides review the part without guessing.

Keep the Production Process Stable

A first sample may meet the drawing while later parts vary. This can happen when the tool wears, the material changes, or the machine setup is adjusted.

I prefer to keep the process stable through:

  • Tool condition checks
  • Fixed workholding methods
  • Clear setup instructions
  • Material traceability
  • In-process inspection
  • Final inspection
  • Records for each production batch

For a small aluminum bracket, the first inspection may focus on the mounting holes and the contact surface. If those features remain stable during the run, the chance of assembly problems is lower.

The inspection frequency depends on the part quantity, tolerance, material, and process risk. A small batch may receive full inspection. A larger batch may use a defined sampling plan with checks at key stages.

A Practical Example

A customer once sent a drawing for a stainless steel spacer used between two assembled components. The outside diameter was 25.00 mm with a tolerance of ±0.05 mm. The internal bore was also listed with a close tolerance.

The first version met the outside diameter requirement, but the bore fit was too tight during assembly. The issue was not only the bore size. The stainless steel material, surface finish, and mating shaft condition also affected the fit.

I suggested checking the shaft measurement, revising the bore tolerance, and adding a small entry chamfer. The updated part was easier to install while keeping the spacer’s main function unchanged.

This example shows why a tolerance should be linked to the assembly condition. A smaller number on the drawing does not always create a better part.

Questions I Ask Before Quoting

I ask for several details before confirming a quotation:

  • What is the part used for?
  • Which dimensions control the fit?
  • Does the part mate with an existing component?
  • What material is required?
  • Is surface treatment needed?
  • What quantity is planned?
  • Is a sample inspection report required?
  • Are there special packaging or labeling needs?

These answers help separate functional requirements from general preferences. They also reduce changes after production begins.

Keep the ±0.05 mm Requirement Useful

A custom part made to a ±0.05 mm standard needs more than accurate machine settings. It needs a complete drawing, suitable process planning, stable production, and inspection that matches the feature.

I focus on the dimensions that affect fit and function. I also explain when a tolerance may need adjustment because of material behavior, part geometry, or the selected process.

When the requirement is clear at the start, the part is easier to produce, inspect, and assemble. That gives the project a better path from drawing to finished component.


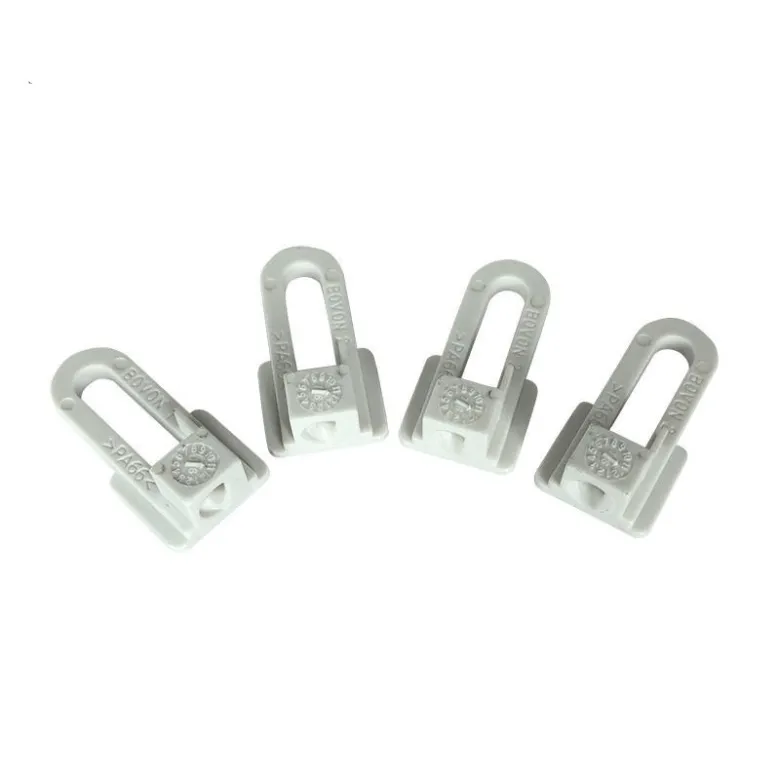

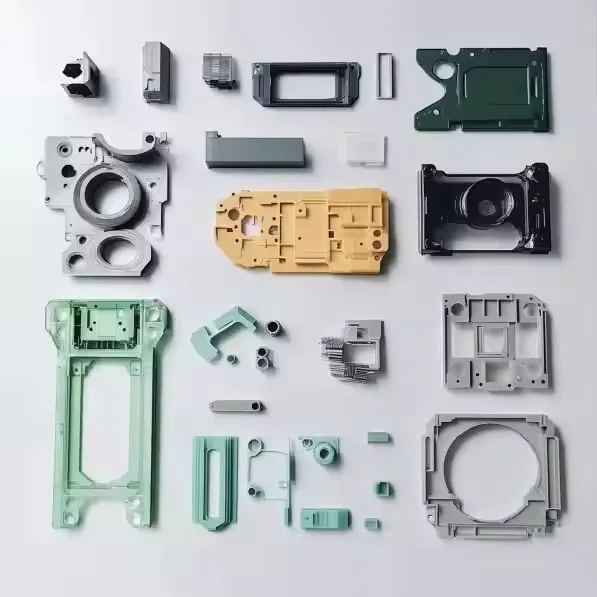

Tight Tolerances, Reliable Custom Parts



When a custom part must fit into an existing assembly, a small dimensional error can create extra work. A hole may sit slightly off-center. A shaft may not slide as expected. A surface may need more finishing than planned. These issues can affect assembly time, product performance, and production cost.

I focus on the details that affect the final fit: drawing requirements, material choice, tolerance control, surface finish, and inspection records. The goal is simple—produce custom parts that match the approved design and support a steady assembly process.

Clear drawings support accurate production

I review each drawing before machining begins. The review covers:

  • Part dimensions
  • General and specific tolerances
  • Hole size and position
  • Thread type and depth
  • Material grade
  • Surface finish
  • Edge conditions
  • Heat treatment or coating needs
  • Critical dimensions for inspection

A part may look simple, yet one unclear note can lead to different interpretations. I prefer to confirm these details before production rather than correct a problem after machining.

For example, a mounting plate may contain four holes that appear identical. If the hole position affects alignment with another component, that position needs clear control. I treat those dimensions as functional requirements, not just numbers on a drawing.

Tolerance control starts with the process

Tight tolerances require more than a final measurement. I consider the machine, cutting tools, workholding method, material behavior, and inspection equipment before production.

The process may include:

  1. Reviewing the drawing and 3D model
  2. Checking the selected material
  3. Planning the machining sequence
  4. Choosing suitable tools and cutting conditions
  5. Securing the workpiece with stable fixturing
  6. Checking key dimensions during production
  7. Completing a final inspection
  8. Recording results for future reference

Material can change during machining. Stainless steel, aluminum, brass, and engineering plastics each respond differently to cutting heat and tool pressure. I account for these differences when setting up the job.

A long shaft, for instance, may move slightly under cutting force. A thin plate may change shape after material is removed. When I understand these risks early, I can choose a better machining order and reduce the chance of dimensional variation.

Inspection should match the part

Not every dimension needs the same inspection method. Calipers may work for general dimensions. Micrometers can support closer measurement. A height gauge, bore gauge, thread gauge, or coordinate measuring machine may be suitable for more demanding features.

I match the inspection method to the part requirement. Critical features receive closer attention than non-functional edges or reference surfaces.

A custom housing may need a precise bore, flat mounting face, and accurate hole pattern. Checking only the outside length would not confirm whether the housing can work in the assembly. I inspect the features that influence fit and function.

Inspection reports can include:

  • Measured dimensions
  • Tolerance ranges
  • Material information
  • Surface finish details
  • Quantity inspected
  • Equipment used
  • Inspection date

These records help connect the finished part with the original specification.

Communication reduces production risk

I ask for the information needed to understand the part before quoting or machining. A useful request may include:

  • 2D drawing
  • 3D CAD file
  • Material requirement
  • Expected quantity
  • Surface treatment
  • Target tolerance
  • Application details
  • Delivery requirements

When a tolerance is tighter than the part function requires, I may ask whether a wider range is acceptable. This can support a more practical process without changing the intended use.

When a tolerance is essential, I keep it as a controlled requirement. My role is not to remove important specifications. It is to separate functional requirements from details that may allow more production flexibility.

A practical example

Imagine a small aluminum bracket used to hold a sensor. The bracket has two mounting holes, one locating slot, and a flat contact surface. The locating slot controls the sensor position, while the outer edges have little effect on operation.

The slot and mounting holes need careful control. The outer edges may only need general machining tolerance. Treating every feature as equally critical could add cost without improving the bracket’s function. Giving attention to the features that affect assembly creates a better balance between accuracy and production efficiency.

This approach applies to prototypes, replacement parts, machine components, fixtures, covers, shafts, plates, and other custom-machined products.

Parts should be made for their next step

A machined part does not work alone. It may be anodized, plated, painted, heat-treated, assembled, or installed into a larger system. I consider these steps when reviewing the requirements.

A coating can add thickness. Heat treatment can affect hardness and dimensions. Assembly may require a controlled press fit or clearance fit. If these conditions are known before production, the part can be prepared for the next operation.

I prefer clear communication, consistent inspection, and practical tolerance planning over broad promises. The right custom part is not defined by a number alone. It is defined by how well the finished feature supports the product it belongs to.

We welcome your inquiries: sale@hwplasticparts.com/WhatsApp +8615069372818.


References


International Organization for Standardization — 2017 — Geometrical Product Specifications GPS Geometrical Tolerancing Tolerances of Form Orientation Location and Run-out

International Organization for Standardization — 2019 — Geometrical Product Specifications GPS General Tolerances Part 1 Tolerances for Linear and Angular Dimensions Without Individual Tolerance Indications

American Society of Mechanical Engineers — 2018 — Dimensioning and Tolerancing ASME Y14.5

Mikell P Groover — 2020 — Fundamentals of Modern Manufacturing Materials Processes and Systems

Peter J Hoffman Eric S Hope Ronald Janes and Brian S Hoeppner — 2012 — Precision Machining Technology

John A Bosch — 1995 — Coordinate Measuring Machines and Systems誆
