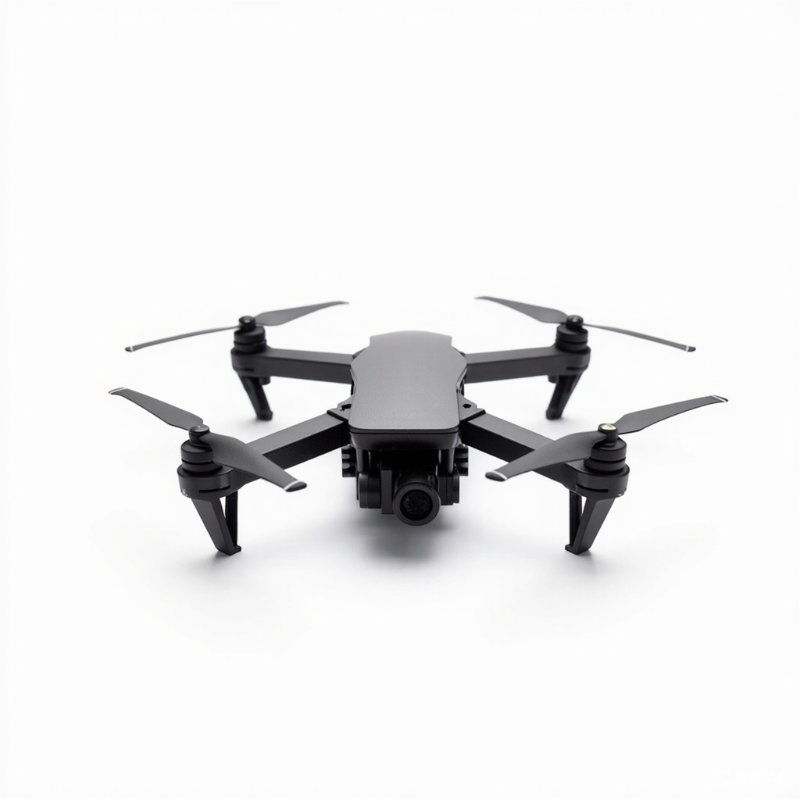

Key Points for Efficient and Lightweight Injection Molding of Drones. This article will delve into the three core elements of material selection, design optimization, and injection molding processes, explaining why they are crucial to drone lightweighting.
Material Selection: The Foundation of Lightweighting
Material selection is the cornerstone of drone lightweighting. According to a report by the Materials Research Society (MRS), high-strength, lightweight plastics stand out due to their exceptional performance. Carbon fiber reinforced plastic (CFRP) is the material of choice due to its exceptionally high strength-to-weight ratio, significantly enhancing rigidity while significantly reducing weight. Glass fiber reinforced plastic (GFRP) also performs well and is relatively low-cost, making it suitable for cost-sensitive projects.
High-performance polymers such as polyetheretherketone (PEEK) and polyphenylene sulfide (PPS) are also favored for their exceptional performance. According to research data from the Journal of Materials Science and Engineering, PEEK has a tensile strength of 90-100 MPa, a density of only 1.3-1.4 g/cm³, and excellent high-temperature resistance, making it suitable for drone components operating in high-temperature environments. PPS materials, with their chemical stability and flame retardancy, excel in complex chemical environments and environments with high fire protection requirements. These materials provide a solid foundation for lightweighting drones, allowing manufacturers to make appropriate choices based on the specific needs and cost budgets of their drones.
Design Optimization: The Core of Lightweighting
Design optimization is a key step in achieving lightweighting in drones. Topology optimization technology utilizes advanced computer simulation software and finite element analysis principles to precisely determine the optimal material distribution within the drone structure. By simulating various stresses, such as aerodynamic and impact loads, it minimizes material usage while meeting strength and stiffness requirements. For example, in a NASA drone design, topology optimization technology reduced wing weight by 15% while maintaining structural integrity and flight performance.
Functional integration is also crucial in the design process. Integrating multiple functional components into a single unit not only reduces the number of parts and assembly complexity, but also further reduces the weight of connected components. For example, an integrated landing gear and fuselage structure improves structural strength while effectively reducing overall weight.
Injection Molding: The Key to Ensuring Component Quality
Precision injection molding technology is crucial for ensuring the quality of drone components. This technique requires precise control of various parameters during the injection molding process, including injection pressure, speed, and temperature. According to the industry standard ISO 294-1:2017, precise parameter settings ensure part dimensional accuracy within ±0.1mm and surface roughness below Ra0.8μm, significantly reducing subsequent processing steps and improving production efficiency.
Multi-component injection molding technology provides an efficient solution for manufacturing complex parts. It enables the seamless integration of different materials in a single operation to create components with multiple functions. For example, in the manufacture of drone casings, multi-component injection molding combines a wear-resistant outer layer with a shock-absorbing inner layer, improving the casing's wear resistance while enhancing protection for the internal electronics.
Material selection, design optimization, and injection molding process are three key elements essential for efficient and lightweight drone injection molding. These interdependent and synergistic factors provide a solid foundation for lightweight and high-performance drones. By continuously optimizing these key points, drone manufacturers are able to improve production efficiency, reduce costs, and create lighter, stronger, and more durable drones.
