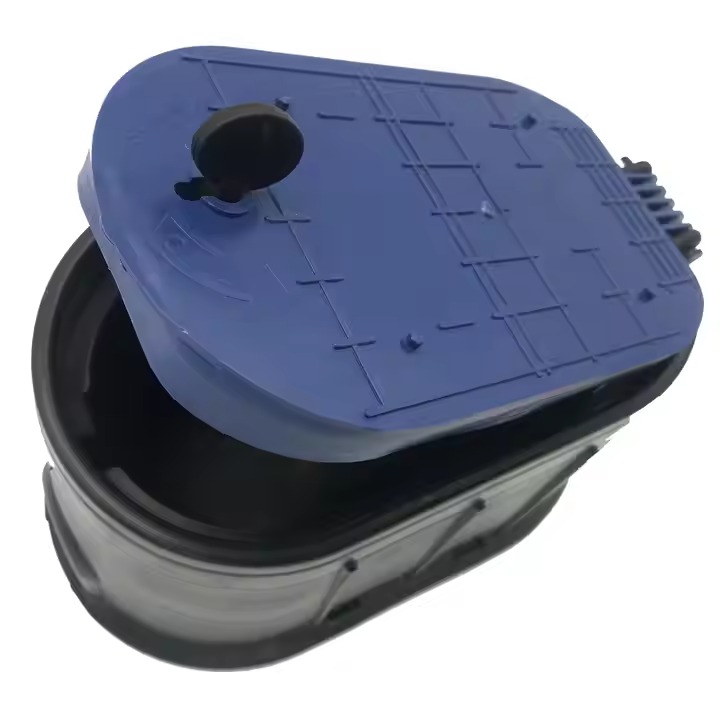

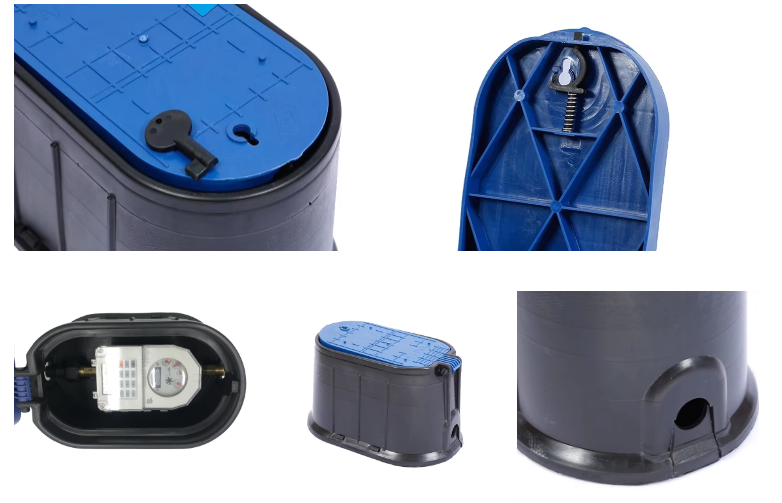

Water meter housings produced via injection molding are designed to be durable, weather-resistant, and capable of protecting internal mechanisms while still permitting accurate water measurement. The most significant **materials** and **features** utilized in their composition are as follows:
### **Typical Materials:**
1. **Polypropylene (PP)**
- **Features:**
- Excellent chemical resistance (water, acids, alkalis resistant).
- Excellent fatigue resistance and impact strength.
- Economical and light in weight.
- UV-stabilized grades are available for outdoor use.
2. **Acrylonitrile Butadiene Styrene (ABS)**
- **Characteristics:**
- High rigidity and toughness.
- Good dimensional stability.
- Moderate temperature and impact resistant.
- Indoor meters are usually fabricated as it possesses lower UV resistance.
3. **Polyamide (Nylon, PA6 or PA66)**
- **Properties:**
- High mechanical strength and abrasion resistance.
- Good thermal stability.
- Resistant to chemicals and oils.
- Used in harsh environments often.
4. **Polycarbonate (PC) or PC Blends**
- **Features:**
- High impact resistance (practically unbreakable).
- Good transparency (when visibility is required).
- UV-stable for outdoor use.
- Frequently alloyed with ABS (PC/ABS) for improved cost-performance trade-off.
5. **Polyphenylene Sulfide (PPS) or PBT** (for premium applications)
- **Characteristics:**
- Outstanding thermal and chemical resistance.
- Used under severe conditions (aggressive water chemistry, elevated temperature).
- More expensive but long-lasting.
### **Key Features of Injection Molded Water Meter Housings:**
1. **Weather & UV Resistance** – Essential for outside meters to prevent degradation.
2. **Chemical Resistance** – Must be resistant to chlorine, hard water, and other additives.
3. **Impact & Drop Resistance** – Prevents cracking during installation or handling.
4. **Sealing & Waterproofing** – Often includes gaskets or O-rings for IP68 waterproofing.
5. **Temperature Resistance** – Must endure freezing and high-temperature environments.
6. **Dimensional Stability** – Prevents warping under pressure or temperature changes.
7. **Flame Retardancy** (if required) – Some standards (e.g., UL94) may apply.
8. **Lightweight & Simple Installation** – Reduces shipping and handling costs.
9. **RF Transparency** (for smart meters) – Allows wireless signal transmission.
### **Manufacturing Considerations:**
- **Precision molding** yields tight tolerances for sealing surfaces.
- **Reinforcements** (minerals, glass fiber) can yield added strength.
- **Colorants & Additives** impart UV resistance and visibility.
### **Standards & Certifications:**
- **ISO 4064** (water meter standards)
- **NSF/ANSI 61** (drinking water safety)
- **IP68** (water and dust ingress protection)
