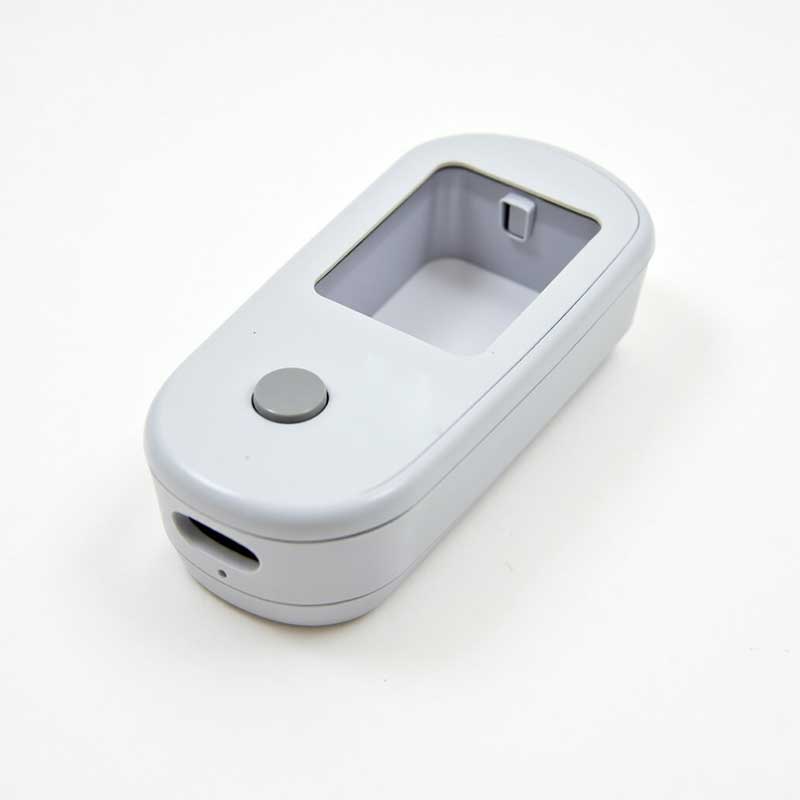

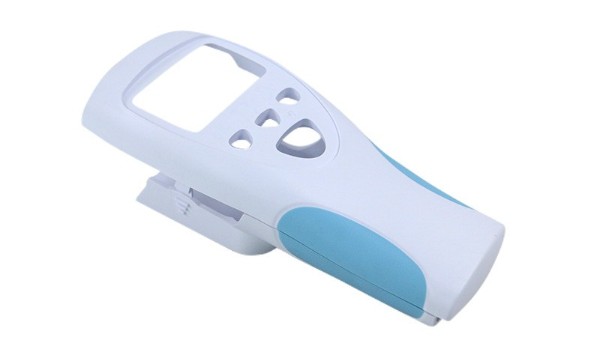

Portable handheld instruments play an indispensable role in many industries today, and injection molding of their plastic housings is a critical step. A good injection molding process ensures the housing's precision, strength, and aesthetics, directly impacting the instrument's performance and user experience. However, this process presents numerous challenges. This article will delve into these challenges and explore effective solutions.
II: Material Selection and Performance Balancing: Difficulties and Solutions
1. Difficulties
1.1 Material Compatibility
Plastic materials are diverse, each with its own unique physical and chemical properties, such as strength, toughness, weather resistance, and transparency.
When selecting materials for portable handheld instrument housings, it's crucial to balance basic functions such as protecting internal components and ensuring easy handheld operation, while also maintaining cost control. Selecting the right material is a significant challenge.
1.2 Performance Evaluation is Complex
Accurately evaluating the performance of different materials under actual operating conditions requires extensive test data and extensive practical experience.
The compatibility of the material with internal instrument components must also be fully considered to avoid component damage or performance degradation due to chemical or physical reactions.
2. Solution
2.1 Deeply Understand Material Properties
Common Material Analysis:
ABS: Offers excellent overall physical properties, including strength, toughness, and processability. It has moderate temperature and pressure requirements, is relatively affordable, effectively protects components, and facilitates injection molding.
PC: Offers excellent impact resistance and high transparency, but requires high processing temperatures and is relatively expensive. A balance between performance and cost is crucial for successful applications.
2.2 Comprehensively Consider Multiple Factors in Material Selection
Performance Requirements Matching:
For analytical instrument applications, such as outdoor monitoring, select materials with excellent weather resistance (such as modified PC). For applications susceptible to impact, select materials with excellent strength and toughness (such as ABS or modified materials).
For electrostatically sensitive components, consider special performance requirements and choose antistatic materials (such as antistatic ABS or materials with antistatic agents).
Cost Factors:
Comprehensively evaluate material purchase price, processing costs, scrap rate, and material utilization. Different materials have different processing requirements, which impact costs such as energy consumption; high scrap rates increase unit costs; and the difficulty of scrap recycling should be considered.
Compatibility Guarantee:
Analyze the characteristics of the instrument's internal components, consult documentation, and conduct tests to ensure that the selected materials have no chemical reactions or adverse physical interactions with the components, such as corrosion resistance and thermal expansion coefficient mismatch.
III. Difficulties and Solutions in Mold Design and Manufacturing Precision
1. Difficulties
1.1 Design Compatibility Challenges
Portable handheld instrument housings come in a variety of shapes, requiring precise internal space for components such as batteries, circuit boards, and displays.
Improper mold design can result in poor fit between the molded housing and internal components, leading to assembly difficulties, loose components, and even damage.
1.2 Manufacturing Precision Challenges
Achieving high-precision dimensional control during mold manufacturing is challenging.
Even slight dimensional deviations can affect the housing's appearance, resulting in surface unevenness or excessive gaps. They can also negatively impact the housing's functionality, such as by compromising the secure mounting of components.
Achieving high-precision manufacturing requires advanced equipment and superior craftsmanship, which often comes with high costs and technical barriers.
1.3 Mold Release Design Complexity
Designing a mold that can accommodate the complex external shape and internal structure of the housing while ensuring effective demolding is a significant challenge.
Different housing structures may require specialized demolding mechanisms, such as side ejection or angled ejection. Improperly designed demolding mechanisms can make it difficult for the molded housing to be smoothly ejected from the mold, potentially resulting in damage or reduced production efficiency.
2. Solution
2.1 Adhere to Mold Design Principles
Matching Shape and Dimensions:
The mold cavity shape must accurately match the external contours of the portable handheld instrument housing. Strictly control cavity dimensional tolerances to ensure accurate housing dimensions and ensure precise assembly with internal components. For example, for a specific handheld instrument housing, the tolerance of key mold cavity dimensions can be controlled within ±0.1mm.
Sufficient and appropriate installation space is reserved for internal components, and features such as slots and positioning holes are designed to facilitate component installation and securement within the housing.
2.2 Utilizing High-Precision Manufacturing Methods
Application of Advanced Equipment:
Machining and finishing of molds is performed using CNC machining centers, achieving high-precision dimensional machining through precise control of tool motion.
For complex mold structures, specialized machining methods such as EDM are incorporated to complete areas difficult to achieve using conventional machining.
Quality Monitoring and Assurance:
Regular calibration and maintenance of machining equipment ensures consistent machining accuracy.
Precision measuring equipment such as coordinate measuring machines provides real-time measurement and feedback of key mold dimensions, enabling timely detection and correction of dimensional deviations.
IV. Quality Control and Defect Prevention
1. Difficulties
1.1 Common Defects Have Significant Impact
· Common quality defects in injection molded products (such as bubbles, silver streaks, shrinkage, and flash) are prone to occur during the injection molding of portable handheld instrument housings.
· These defects not only affect the housing's appearance but also reduce its mechanical properties and functional reliability, leading to product failure, increased scrap rates, and increased production costs.
1.2 Difficulty in Identifying the Causes of Defects
Accurately identifying the causes of various quality defects and implementing effective preventive measures is challenging.
Different defects are caused by a variety of factors.
Preventing defects at the source requires a thorough understanding of all aspects of the injection molding process (raw material handling, mold design, and molding operations, etc.).
2. Solutions
2.1 In-depth Analysis of Defect Causes and Preventative Measures
Bubbles:
Cause: Inadequate drying of the raw material leads to vaporization of moisture during injection molding, forming bubbles. Poor venting during the injection molding process prevents air from being exhausted in a timely manner and is trapped by the plastic melt, forming bubbles. Excessive injection speed creates turbulence in the mold cavity, entraining air and forming bubbles.
Preventative Measures: Strengthen raw material drying to ensure moisture content is below the specified value; install venting grooves in the mold; and adjust the injection speed appropriately.
Silver String:
Cause: Excessive impurity content in the raw material causes uneven mixing with the plastic melt, resulting in silver string. Improper temperature control, such as excessively high barrel temperature or excessively low mold temperature, can cause the plastic melt to change state and produce silver string.
Preventative Measures: Strictly screen the raw material to remove impurities; precisely control barrel and mold temperatures, setting the appropriate temperature range for different materials and mold structures.
Shrinkage:
Cause: Insufficient holding pressure or too short a holding time prevents adequate compensation for shrinkage during cooling, leading to dents on the shell surface.
Preventative Measures: Optimize the holding pressure and holding time based on the shell wall thickness and the shrinkage rate of the raw plastic material.
Flash:
Cause: Insufficient mold clamping force allows plastic to overflow the mold cavity during injection, forming excess plastic. Improper mold parting surface design can easily lead to plastic accumulation at the parting surface, resulting in excess plastic.
Preventative measures: Ensure sufficient mold clamping force. Calculate the appropriate clamping force based on factors such as mold size and injection pressure and check it regularly. Optimize mold parting surface design and implement appropriate sealing measures to prevent plastic accumulation.
Although injection molding of portable handheld instrument housings is crucial across various industries, it faces challenges such as material selection, mold manufacturing precision, process parameter optimization, quality control, and cost management. By thoroughly analyzing these issues and their corresponding solutions, we hope to help practitioners effectively address them, improve product quality and market competitiveness, and promote the sustainable development of the industry.
