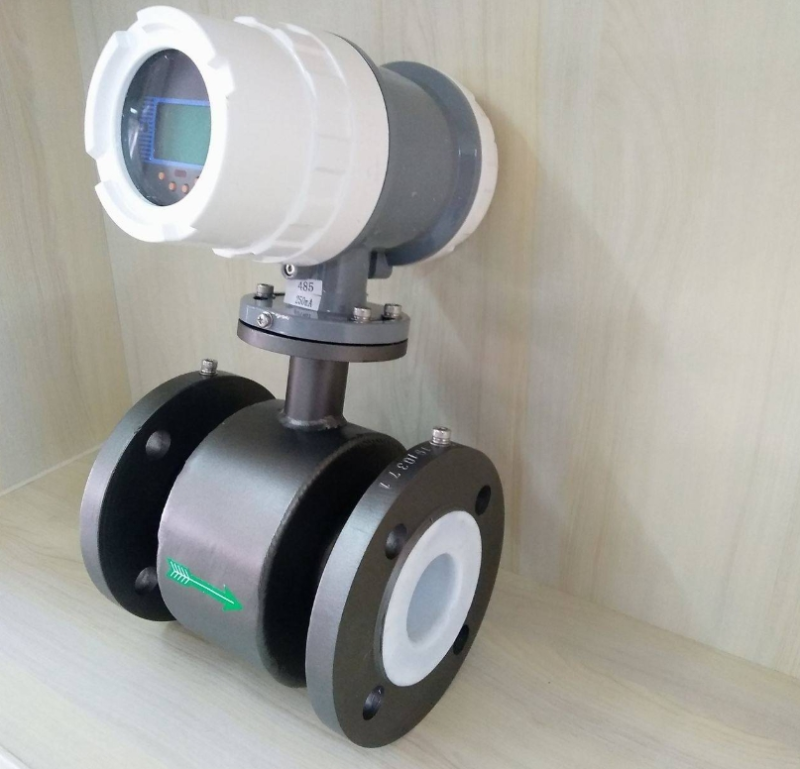

In the precision construction of electromagnetic flowmeter, the lining plays a crucial role, it is in direct contact with the measured flow, so it must have excellent corrosion resistance, wear resistance and suitable surface roughness. Injection molding, as an efficient and precise plastic molding technology, makes it possible to produce plastic parts with complex shapes and precise dimensions. This article will explore in depth the parts that can be processed by injection molding in the lining of electromagnetic flowmeters and their innovative material applications.
First, fluorine plastic PFA lining: the pioneer of chemical corrosion resistance
Properties of materials
PFA (fluxable polytetrafluorethylene) stands out for its excellent chemical resistance, heat resistance, and adhesion resistance (surface finish). It can effectively reduce internal stress and internal bubbles, avoid cracks, and ensure high reliability of the flow meter in extreme environments. According to the literature [1], the chemical corrosion resistance of PFA makes it excellent in a variety of industrial applications.
Injection molding process
PFA liners are mainly manufactured by injection molding (injection molding). In the injection molding process, precise control of the injection temperature, the cooling system of the metal mold and the pressure of the resin are the key to ensure the quality and performance of the lining. For example, a well-known flowmeter manufacturer has successfully extended the corrosion resistance of PFA liners by 30% by optimizing injection molding parameters, while improving production efficiency.
Two, polytetrafluoroethylene (PTFE) lining: challenge the traditional processing limits
Properties of materials
PTFE has excellent resistance to strong acid and alkali corrosion, reliable high temperature resistance and unique non-stick (smooth surface, not easy to bond with other substances). These properties make it an ideal material for the lining of electromagnetic flowmeters. According to literature [3], the high temperature resistance of PTFE makes it still stable in high temperature environment.
Innovation in injection molding
Although PTFE is not traditionally easy to process by direct injection molding, injection molding of PTFE has been successfully achieved through innovative processes, such as mixing PTFE powder with special additives and then using high temperature and high pressure injection molding. This innovation not only simplifies the production process, but also improves the dimensional accuracy and surface quality of the lining. For example, an innovative company has reduced the production cycle of PTFE lining by 40% through this new process, and the product qualification rate has increased to more than 95% [4].
Three, rubber material lining: vulcanization and watering alternatives
Properties of materials
Rubber materials such as neoprene rubber, EPDM rubber and polyurethane, with their good elasticity and sealing performance, occupy a place in the electromagnetic flowmeter lining. However, the traditional processing methods (vulcanization, watering) of these materials have problems such as low production efficiency and poor dimensional accuracy. According to the literature [5], the vulcanization process of rubber-like materials is complex and costly.
Injection molding process exploration
Recently, some research teams have begun to explore the injection molding technology of rubber materials. Through the development of new rubber composite materials and special injection molding equipment, the injection molding of rubber lining was successfully achieved. This new rubber liner not only maintains the excellent performance of traditional rubber, but also significantly improves production efficiency and product consistency. For example, the production efficiency of the injection molded rubber liner developed by a research institution is 5 times higher than that of the traditional vulcanization process, and the dimensional accuracy reaches ±0.1mm [6].
Four, composite lining: performance and cost balance
Properties of materials
Composite materials, such as glass fiber reinforced plastic (GFRP) and carbon fiber reinforced plastic (CFRP), combine the light weight and high strength properties of plastics with the reinforcement effect of fibers, providing new material options for electromagnetic flowmeter lining. These materials are not only resistant to corrosion and wear, but also have high mechanical strength and good dimensional stability. According to the literature [7], the application prospect of composite materials in electromagnetic flowmeter is broad.
Innovation in injection molding
The injection molding technology of composite lining is developing rapidly. The mechanical properties of the liner can be significantly improved by the addition of directional fiber reinforcement during the injection molding process. For example, by incorporating carbon fiber into the PFA matrix, one innovative company has successfully developed a high-strength, high-corrosion resistant composite lining that has a mechanical strength improvement of 50% over pure PFA lining and a cost reduction of 20%.
Injection molding has a wide application prospect in the lining manufacture of electromagnetic flowmeter, especially for the lining manufacture of fluorine plastic materials such as PFA. Through continuous innovation and optimization of the injection molding process, it can not only improve production efficiency and product quality, but also expand the application range of materials. In the future, with the further development of material science and processing technology, injection molding processing is expected to play a greater role in the manufacture of electromagnetic flowmeter lining, providing strong support for the realization of high-performance and low-cost flowmeter production.
