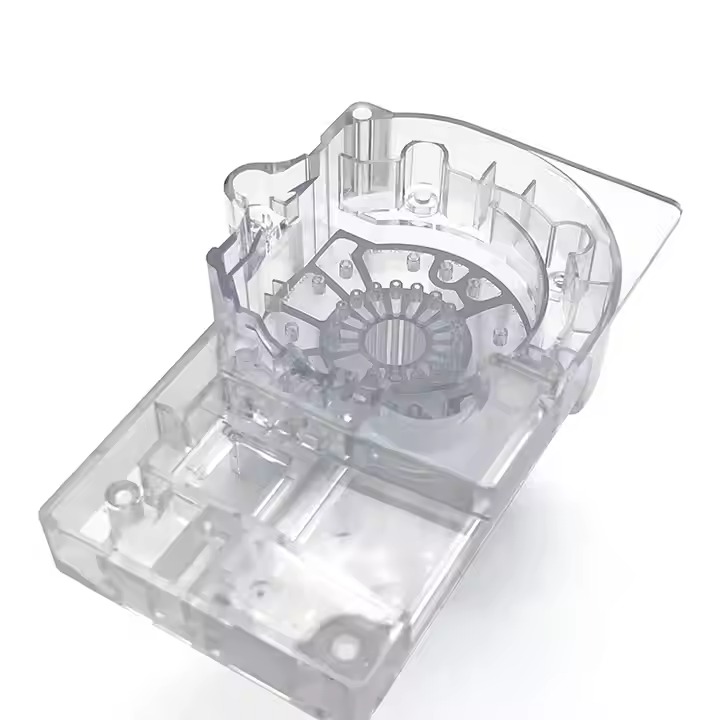

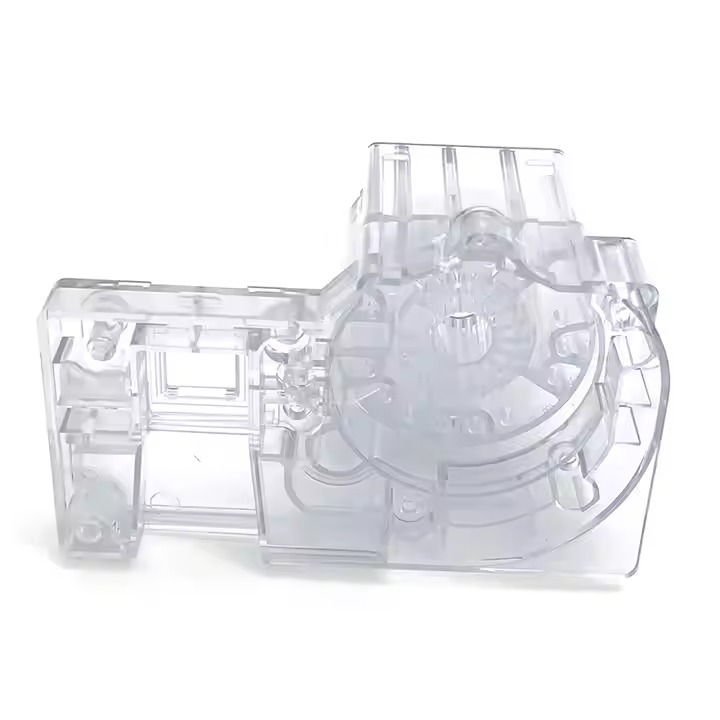

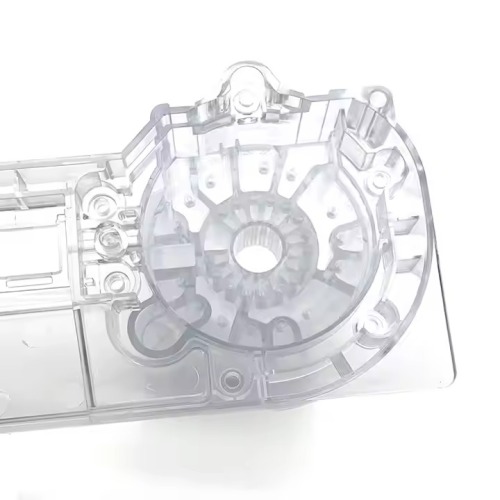

Custom Transparent Plastic Acrylic Case PMMA Shell Tool

Manufacturing

Tool and Mold Making

Application

Plastic Mold, Silicone Mold, Die Casting Tool and Sheet Metal Stamping Tool, etc.

Design Software

UG, ProE, AutoCAD, Solidworks, etc.

Raw Material

P20, NAK80, H13, 8407, 2344, 718H, S316H, SKD61, etc.

Steel Hardness

20~60 HRC

Inspection Tool

CMM, VMS, Caliper, High Gauge, Pin Gauge, Dial Indicator, Micrometer, Ruler, Tape, Tester, etc

Mold Base

LKM, HASCO, DME, etc.

Runner System

Cold runner system and Hot runner system

Cavity Number

Single-cavity or Multi-cavities
(As per customer’s requirement and part structure.)

Ejection Techniques

Gas assisted, Pin ejection, Sleeve ejection, Bar ejection, Blade ejection, etc.

Gate Type

Sprue gate, Edge gate, Sub-gate, Pin gate, Cashew gate, Themal gate, Valve gate, etc.

Heat Treatment

Quenching, Nitriding, Tempering, etc.

Cooling System

Liquid cooling or Beryllium bronze cooling, etc.

Surface Treatment

High gloss, Matte, EDM, Texture, Hardening, Coating etc

Mold Life

Class 101 – Life expectancy of +1,000,000 cycles.
Class 102 – Life expectancy not to exceed 1,000,000 cycles
Class 103 – Life expectancy under 500,000 cycles
Class 104 – Life expectancy less than 100,000 cycles
Class 105 – Life expectancy less than 500 cycles.

Equipment

CNC Machining, EDM, Wire Cutting, Grinding, Lathe, Milling, Drilling, Tapping, Fitting, Polishing, etc
