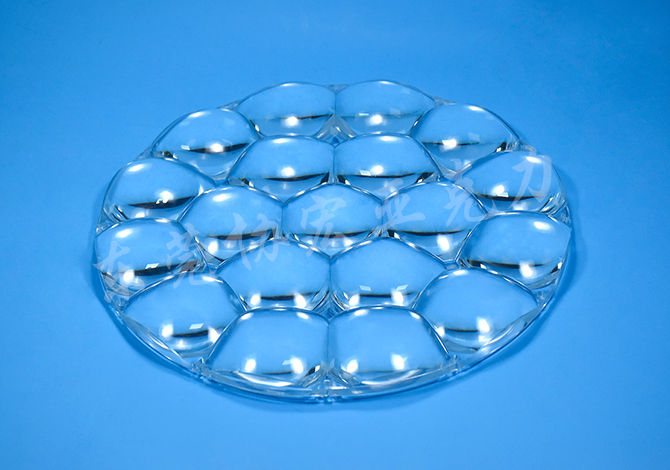

In the injection molding production of transparent acrylic (PMMA) parts, gate flow marks—also known as jetting marks or cold slugs—are among the most vexing cosmetic defects. They typically manifest as serpentine traces or cloud-like patterns radiating outward from the gate, severely compromising the product's transparency and aesthetic appeal. To permanently resolve this issue, one must approach it from a mechanistic perspective and precisely control the following five key steps.
Step 1: Analyzing the Mechanism—Where Do Flow Marks Come From?
The essence of flow marks lies in melt fracture and the disruption of the solidified skin layer. Acrylic is characterized by poor flowability and high viscosity; consequently, when the molten material passes through a narrow gate at high velocity—specifically, if the flow rate is excessive—it enters the mold cavity in a "jetting" stream rather than as a smooth, laminar flow. This jetting stream repeatedly folds and cools against the mold walls, forming irregular "cold slugs" (partially solidified material) which are subsequently encapsulated by the incoming melt, ultimately leaving behind indelible visual defects on the surface of the finished part.
Step 2: Optimizing the Mold—The Gate is the Core
Mold design serves as the cornerstone for resolving flow mark issues.
Increase Gate Dimensions: Appropriately increase the depth and width of the gate to reduce the shear rate of the melt as it passes through; this helps prevent melt fracture.
Adjust Gate Location: Position the gate at a section of the part with thicker wall dimensions, and avoid placing it where the melt stream would directly impinge upon a core pin or a thin wall section. Employing fan gates or tab gates can effectively dampen the initial impact force, allowing the melt to accumulate within a buffer zone before flowing smoothly into the main cavity.
Incorporate Cold Slug Wells: Install a cold slug well of sufficient depth at the end of the runner system to capture the cooler, leading edge of the melt stream exiting the nozzle, thereby preventing this "cold slug" material from entering the mold cavity.
Step 3: Fine-Tuning—The Injection Process
The configuration of processing parameters directly dictates the flow behavior of the molten material.
Employ Multi-Stage Injection: This is the most critical technique for defect control. Divide the injection process into two distinct phases: a "slow gate-crossing" phase and a "rapid filling" phase. The moment the melt passes through the gate, employ a low injection speed (typically 5%–15% of the maximum speed) to allow the melt to spread out slowly in a laminar flow, thereby preventing jetting. Once the melt has covered the gate area, switch to a high-speed, high-pressure injection phase to fill the cavity completely and ensure a full shot.
Increase Mold Temperature: Acrylic is extremely sensitive to mold temperature. Raising the mold temperature to 60°C–80°C—or even higher—can effectively delay the formation of a solidified skin layer, enhance melt fluidity, and facilitate better fusion between the initial, cooler melt front and the subsequent incoming melt.
Step 4: Strict Material Control—Drying and Temperature
Acrylic is highly hygroscopic; moisture present in the material will vaporize under high-temperature processing conditions, leading to an exacerbation of flow marks (gas streaks).
Thorough Drying: Prior to processing, PMMA must be dried at a temperature of 80°C–100°C for 3–4 hours to ensure its moisture content remains below 0.02%.
Precise Temperature Control: Strictly control the barrel temperature to prevent material degradation and gas generation caused by excessive heat, while also avoiding insufficient melt fluidity caused by temperatures that are too low. Typically, the nozzle temperature should be set slightly lower than the temperature of the front section of the barrel to prevent drooling.
Step 5: Equipment Maintenance—Ensuring Stability
Equipment stability is often an easily overlooked factor. Ensure that the injection machine's nozzle is perfectly aligned with the mold's sprue bushing and that their spherical contact surfaces mate securely; this prevents material leakage and the formation of cold slugs. Furthermore, the nozzle orifice diameter should be slightly smaller than the diameter of the main sprue channel to ensure smooth demolding and prevent cold material residue from adhering to the mold.
Summary: Resolving flow marks at the gate in acrylic molding requires more than just focusing on a single process step. Only by synergistically applying the following five strategies—"Mold Optimization to Reduce Shear," "Multi-stage Injection to Control Flow Behavior," "High Mold Temperature to Aid Fusion," and "Material Drying to Eliminate Volatiles"—can this aesthetic challenge be thoroughly overcome, enabling the stable production of high-quality, high-transparency acrylic products.
