I. Technical Bottlenecks of Traditional Processes and the Need for Alternatives
In the field of optically transparent products, traditional technologies such as casting, extrusion, and glass processing are gradually being replaced by precision injection molding due to a combination of efficiency, precision, and cost limitations.
1. The Efficiency Dilemma of Casting Molding
Core Advantages: Capable of producing ultra-thick sheets (>200mm) with a light transmittance ≥91%.
Key Disadvantages:
Molding cycles up to 48 hours, resulting in high energy consumption;
Inability to directly manufacture complex structures with clips or threads;
Secondary processing results in a 15%-25% yield loss.
2. Transmission Uniformity Challenges in Extrusion Processing
Typical Applications: Flat Billboards, Signage Substrates.
Process Limitations:
Flow marks are likely to occur when thickness exceeds 15mm;
Cutting edges require additional polishing, increasing production costs.
3. Application Limitations of Glass Materials
Light transmittance is only 85%-88%, and its density is 2.5 times that of acrylic.
Processing temperatures must exceed 1400°C, making it difficult to achieve precision designs such as micropores and curved surfaces.

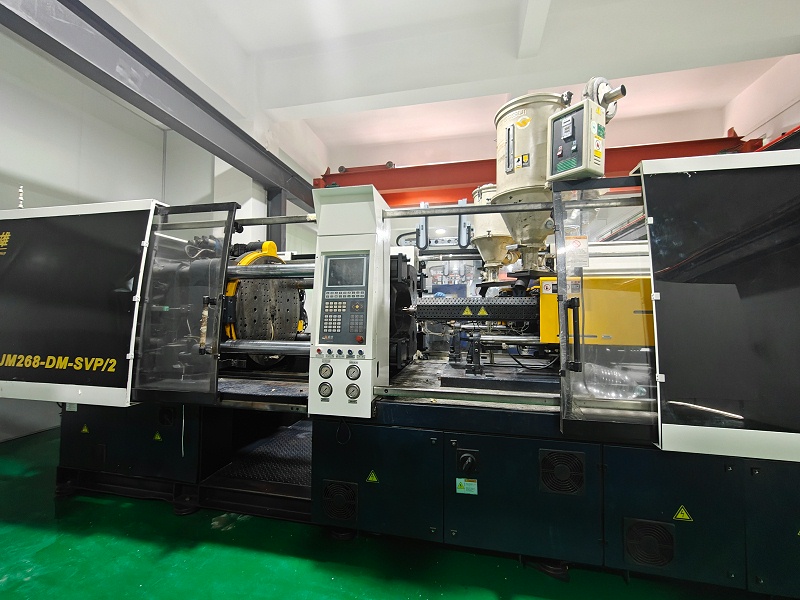

WeChat Screenshot_20250320140301
II. Process Innovations in Acrylic Injection Molding
By combining materials science and precision engineering, injection molding technology overcomes multiple limitations of traditional processes.
1. Path to Optical-Grade Surface Accuracy
Mold Technology:
Mirror polishing of the mold cavity (Ra ≤ 0.05μm) reduces surface haze.
Mold temperature control accuracy of ±0.5°C avoids cold slug marks.
Material Processing:
Pre-drying the raw materials to a moisture content of <0.03% eliminates sources of bubbles.
Adding methyl methacrylate copolymer improves melt fluidity.
2. Integrated Molding of Complex Functional Structures
Application Areas
Typical Structures
Precision Requirements
Medical Devices
Microfluidic Chip (Channel Width 0.1mm)
Dimensional Tolerance ±0.005mm
Automotive Lighting
Multifocal Lenses
Curvature Radius Error <0.1%
Smart Home
Transparent Touch Panels
Flatness ≤0.02mm/m
3. Lifecycle Cost Advantages
Mass Production Phase: Automated injection molding machine efficiency reaches 600 molds/day;
Mold Amortization: Over a lifespan of 500,000 cycles, the cost per mold is reduced to 0.02 yuan;
Material Loss: Mold flow analysis optimizes gate design, resulting in a scrap rate of <3%.
III. Industry Solutions and Technological Innovations
1. Medical Diagnostic Equipment Components
Technical Breakthroughs:
Medical-grade PMMA (compliant with USP Class VI standards);
In-mold aseptic molding technology prevents yellowing caused by ethylene oxide sterilization.
2. Translucent Components for New Energy Vehicles
Case Data:
Injection molding cycle time of 90 seconds, 50 times faster than the casting process;
Passed high and low temperature cycling tests from -40°C to 120°C with no cracking or deformation.
3. Optical Components for Consumer Electronics
Innovative Process:
Double-layer injection molding technology: Light diffuser added to the inner layer, while the outer layer maintains 92% transmittance;
Nanoimprint mold: Directly molds anti-reflective microstructures (2μm height).
IV. Technical and Economic Evaluation of Process Selection
1. Key Indicator Comparison
Parameters
Acrylic Injection Molding
Traditional Casting
Minimum Molded Wall Thickness
0.25mm
3mm
Light Transmittance (5mm Thickness)
92.3%
89.5%
Annual Production Cost of 500,000 Units
￥1,200,000
￥2,800,000
Recyclable Material Ratio
≤30% (Does not affect transparency)
Non-recyclable
2. Selection Decision Tree
Prioritize Injection Molding:
① The product contains complex features such as undercuts and threads;
② Monthly demand > 5,000 units;
③ Surface hardness ≥ 2H (pencil hardness) is required.
Considering Traditional Processes: Ultra-thick sheet materials with a unit weight > 5kg
V. Technological Evolution and Industry Value
Acrylic injection molding is expanding the application boundaries of highly transparent materials through continuous technological innovation:
Material Upgrade: Bio-based PMMA injection molding technology (reducing carbon footprint by 40%);
Process Integration: Integrated injection molding and coating (replacing traditional glass coating processes);
Intelligent Control: AI-powered vision for real-time surface defect detection (99.9% defective product detection rate).
ZIBO HUIWEN Plastics offers a full range of plastic molding capabilities to efficiently mass-produce parts specializing in injection molding and have served customers in variety of industries such as medical, automotive, packaging, construction, home appliances , and agriculture. The company has two factories which occupy a total area of more than 18,000 square meters, and a total of 102 sets of injection molding machines .
