Ten Core Advantages of Injection Molding TPU Plastic Parts: A Technical Analysis Based on Industrial Data and Process Principles



I. Engineering Advantages of Physical Properties

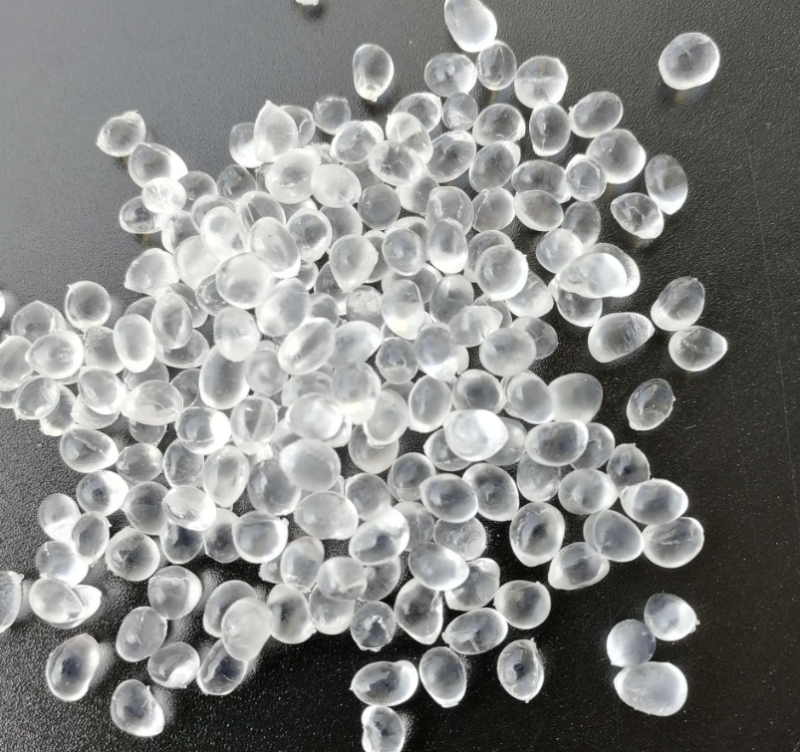

The alternating arrangement of hard and soft segments in the molecular structure of TPU (thermoplastic polyurethane) gives it the elasticity of rubber (elongation at break can reach 600%-800%) and the strength of engineering plastics (tensile strength 20-50 MPa). According to ASTM D4060 testing, TPU's abrasion resistance is over eight times higher than that of natural rubber, making it suitable for high-wear applications such as automotive oil pipes and industrial casters. Its low-temperature resistance (maintaining flexibility at -40°C) is verified by the ASTM D746 brittle temperature test, far exceeding that of PVC.



II. Technical Support for Precision Molding Capabilities

Precision control in TPU injection molding relies on the coordinated optimization of temperature and pressure parameters:



Barrel temperature: 177-232°C (higher hardness requires higher temperature);



Mold temperature: 20-60°C (thick-walled parts require cooling to 5°C to shorten cycle times);



Injection pressure: 20-110 MPa (thin-walled parts require high pressure for rapid filling).



Experimental data shows that after optimizing parameters using mold flow analysis software, the yield rate for parts with micron-level tolerances can be increased to 98%.



III. Quantitative Analysis of Cost Efficiency

Automated TPU injection molding production lines can reduce manual intervention by 70%, achieving a raw material utilization rate of over 95% (compared to approximately 80% for traditional processes). Industry case studies show that blending 25%-30% recycled material with virgin material reduces overall costs by 18%-25%, with no loss in mechanical properties exceeding 5%. The payback period for equipment modification costs for a screw injection molding machine (L/D = 16-20, compression ratio 2.5-3.0) is approximately 12-18 months.



IV. Scientific Verification of Environmental Compliance

TPU complies with RoHS and REACH regulations. Bio-based TPU has a 40% lower carbon footprint than petroleum-based products. A closed-loop recycling system enables 100% re-pelletization of waste materials, reducing waste disposal costs by 30%-50%. An ISO 14040 life cycle assessment shows that the TPU injection molding process consumes 25% less energy than rubber vulcanization.





V. Empirical Research on Cross-Industry Adaptability

Medical: TPU with a hardness of 50A-60D has achieved ISO 10993 biocompatibility certification and is used in catheters and seals.



Automotive: TPU composites with carbon nanotubes (hardness 73D) have a 40% increase in impact strength and are used in anti-collision components.



Electronics: Transparent TPU (transmittance ≥ 90%) has passed the UL 94 V-0 flame retardancy test and is used in waterproof casings.



VI. Quality Control System for Process Stability

Full-process quality control includes three core steps:



Raw Material Pretreatment: Drying at 90-110°C for 1-2 hours (moisture content ≤ 0.05%);



Mold Design: Shrinkage compensation of 0.005-0.020 cm/cm (shrinkage decreases with increasing thickness for hardness 78A-90A);



Defect Prevention: Air bubble defect rate can be reduced to below 0.3% by using venting grooves 0.02-0.05 mm deep.



VII. Equipment Compatibility and Return on Investment Model

Screw injection molding machines (torque ≥ 1200 N·m) are recommended to meet the high plasticizing energy requirements of TPU. Equipment conversion cases show that converting rubber injection molding machines to TPU-specific models increases production capacity by 35%-40% and reduces unit energy consumption by 12%. Return on Investment (ROI) calculations indicate that a medium-sized production line with an annual output of 1 million pieces can achieve profitability within two years.



VIII. Technical Pathways to Shorten R&D Cycles

Using mold flow analysis software (such as Moldflow) can reduce mold development cycles from 6 weeks to 3 weeks. Rapid tooling technology reduces trial production cycles by 50%, and structural feasibility can be verified through 3D printing.



IX. Technical and Economic Benefits of Surface Treatment

TPU products can be directly electroplated (adhesion ≥ 4B grade) or laminated, with a yield rate 15% higher than secondary spraying processes. A mirror finish (Ra ≤ 0.1 μm) is achieved through mold polishing (surface roughness 0.5-0.6 μm), reducing costs by 20% compared to traditional processes.



X. Industry Data Supporting Technological Trends

The 2024 industry report shows:



Intelligent: The share of TPU products embedded with IoT sensors will increase by 25%, enabling real-time monitoring of stress and deformation;



Lightweighting: The application of micro-foamed TPU (with a 15%-20% reduction in density) in automotive interiors will increase by 30%;



Compounding: The penetration rate of TPU/PC blends (with a Vicat softening point increased to 150°C) in electronic heat dissipation components will increase by 18%.



The above technical analysis demonstrates that the advantages of TPU injection molding stem from the coordinated optimization of material properties and process parameters, rather than a single technological breakthrough. Future research directions may focus on the large-scale application of bio-based TPU and the development of intelligent process control systems.
