Introduction to Plastic Screw Types
The main categories of plastic screws include the following:
**Classification by Material:** Plastic screws can be categorized based on their constituent materials. Common materials include Nylon, PC (Polycarbonate), PVDF (Polyvinylidene Fluoride), PP (Polypropylene), PTFE (Polytetrafluoroethylene), and others.

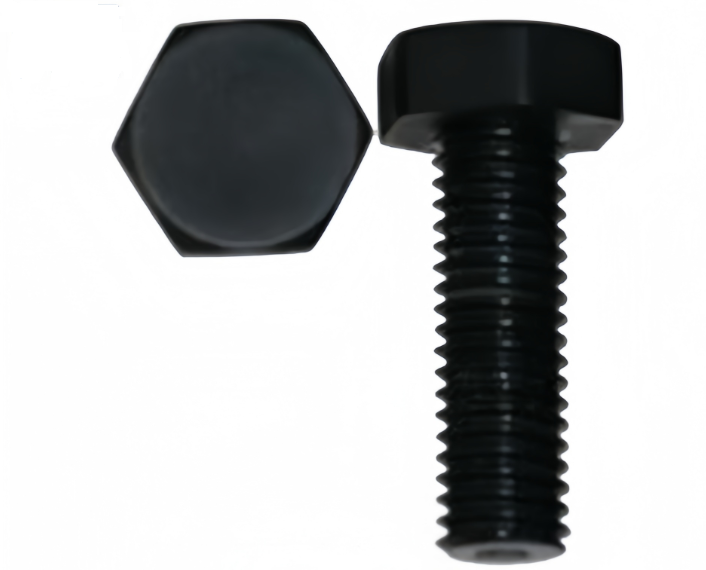

**Classification by Head Shape:** Plastic screws feature a wide variety of head shapes. Common types include Pan Head, Countersunk Head, Hex Head, Socket Head (Internal Hex), and Set Screws.
**Classification by Drive Type (Slot Shape):** The drive types for plastic screws include Phillips, Slotted, Hex, Pozi, Torx (Star), and others.
**Classification by Thread Specification:** Plastic screws are available in two primary thread specifications: Metric and Imperial (US Standard). Metric threads include sizes such as M2, M2.5, M3, M4, M5, M6, M8, M10, and M12; Imperial threads include sizes such as 2-56, 4-40, 6-32, 8-32, and 10-32.
**Application Scenarios and Selection Recommendations for Plastic Screws:**
**Self-Tapping Screws:** In the assembly of interior/exterior trim and electrical components, self-tapping screws are frequently used to fasten parts to plastic bases. When selecting self-tapping screws, it is essential to consider factors such as the plastic component's operating temperature, load-bearing duration, elongation and deformation characteristics, stress levels, and the polymer's creep behavior.
**Thread Types:** The use of TP threads and ST threads is recommended. TP threads are specifically engineered for plastic fastening applications and offer numerous advantages, whereas ST threads are primarily used for joining thin metal sheets but can also be utilized for plastic connections.
**Thread-Cutting vs. Thread-Forming (Pointed) Self-Tapping Screws:** Thread-cutting self-tapping screws are suitable for harder plastics or fiber-reinforced plastic Products —such as PC, PC+ABS, POM, and PMMA. Thread-forming (pointed) self-tapping screws are suitable for softer plastic products—such as ABS, PA, and PP. By understanding these classifications and application scenarios, one can better select the appropriate plastic screws, thereby ensuring the stability and reliability of the connections.
