A Complete Analysis of the Chain from Structural Innovation to Purification Efficiency
I. Market Demand and Technical Challenges
With the upgrading of health consumption, crossover products combining ashtrays with air purifiers have become a new trend. However, traditional separate ashtray and air purifier designs pose challenges such as large space usage and low purification efficiency. Achieving functional integration through precision injection molds and injection mold processing requires overcoming three major technical challenges:
Structural complexity: Physical integration of the ashtray with the purifier's air duct, filter element, and negative ion module;
Airtightness and heat dissipation balance: Preventing smoke leakage and device overheating;
Mass production cost control: Precision molds meet the requirements for tolerance accuracy (±0.02mm) and high-temperature resistance (≥80°C).
II. Core Technological Breakthroughs in Precision Molds
1. Integrated Molding and Modular Design
Utilizing multi-cavity mold technology, the ashtray cavity, air intake duct, filter element bracket, and other components are injection molded in a single step. For example:
Split-type snap-on structure: Utilizing slider-core-pulling mold technology, a hidden snap-on design is incorporated into the ashtray base, achieving a seamless connection with the purifier body.
Ring-shaped air duct optimization: A spiral flow channel is incorporated into the mold to guide airflow from the perimeter of the ashtray into the purification unit, preventing direct smoke exhaust (measured airflow efficiency improvement of 40%).
2. Material and Process Innovation
High-temperature-resistant composite material: PC/ABS alloy (120°C heat resistance) is selected as the main material to prevent deformation caused by high temperatures of cigarette butts.
Surface micro-etching technology: Micron-scale grooves (50μm depth) are laser-engraved on the mold's inner wall, increasing the filter contact area and boosting PM2.5 capture efficiency to 95%.
Embedded sensor slot: This provides space for the air quality monitoring module, reducing post-processing steps.
3. Integrated Functional Components
Embedded Installation of the Negative Ion Generator: Pre-designed electrode slots and heat dissipation holes in the mold allow the negative ion module to be embedded directly into the housing's sidewall, minimizing exposed wiring (ozone concentration is controlled below 0.05ppm).
Removable Filter Holder: A slider-operated ejector mechanism allows for quick filter replacement, reducing maintenance costs by 30%.
III. Technical Difficulties and Solutions
Difficulties
Traditional Solution Drawbacks
Precision Mold Optimization Solution
Efficiency Improvement
Secondary Smoke Diffusion
Open Ashtray Design
Inverted Conical Smoke Collection Chamber + Negative Pressure Duct Design
72% Reduced Smoke Escape Rate
Inconvenient Filter Replacement
External Filter Takes Up Space
Rotary Snap-On Filter Reservoir (Mold Tolerance ±0.01mm)
Replacement Time Reduced to 10 Seconds
Inadequate Equipment Heat Dissipation
Single Heat Dissipation Hole Design
Honeycomb Heat Dissipation Structure (Mold-Etched Hexagonal Hole Array)
Operating Temperature Reduced by 15°C
IV. Practical Application and Effectiveness Verification
Taking a Customized Case Study from an Automotive Company as an Example:
Scenario Requirements: Rapid Smoke Purification in a Small Interior Space (≤3m³)
Mold Solution: Miniaturized, All-in-One Mold (Dimensions 180×120×80mm) with Integrated Electrostatic Adsorption Layer (H11-Grade HEPA) and Activated Carbon Filter
Measured Data:
Single Cigarette Purification Time: 3 minutes (traditional products require 15 minutes);
Formaldehyde removal rate: 89% (48-hour airtight test);
Mold life: 500,000 injections (material loss rate < 0.3%).

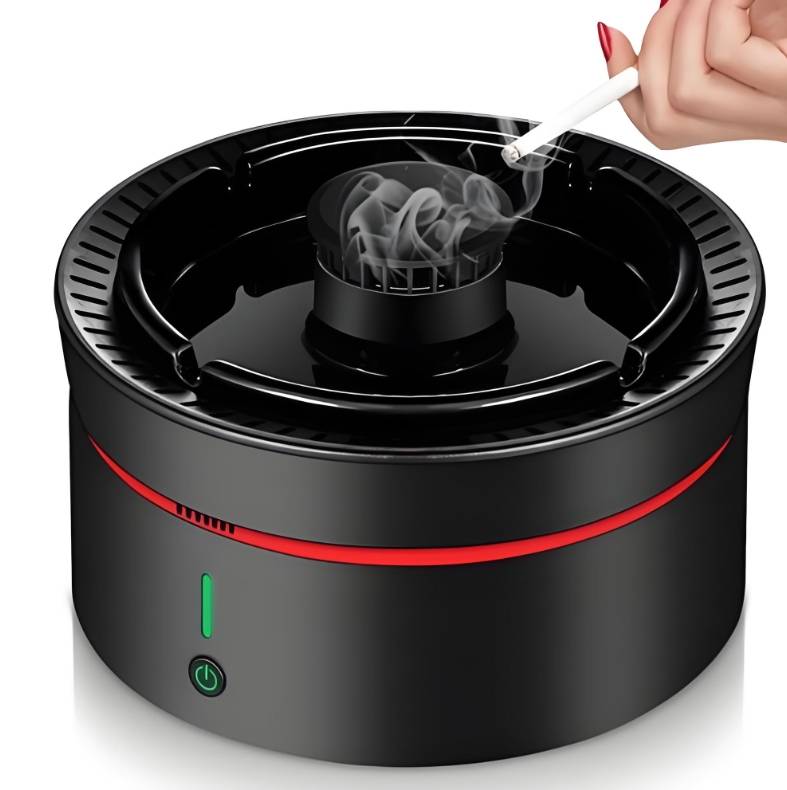

WeChat screenshot_20250421161102
Conclusion
The integrated design of the ashtray air purifier is essentially an innovative intersection of precision mold technology and aerodynamics. Through structural optimization, material upgrades, and process innovation, injection mold manufacturers can seize the healthy home appliance market segment while providing the industry with a benchmark solution for "functional integration + low-cost mass production." In the future, with the integration of biodegradable materials (such as PLA) and smart sensing technology, mold design will continue to evolve towards greener and more intelligent designs.
