Charging piles play a key role in the modern energy sector, and the performance of their plastic components, such as injection molds, impacts overall quality. This article will deeply analyze common faults and repair methods for charging pile plastic molds, explore preventative measures, and help improve production efficiency and quality.
II. Common Fault Classification and Analysis
1. Wear Faults
Manifestations and Impacts: Over long-term use, the mold core and cavity surfaces wear due to friction with the plastic. This manifests as reduced dimensions and increased surface roughness, affecting dimensional deviations and assembly accuracy of charging pile plastic components.
Principle Analysis: Factors such as the friction coefficient, surface finish, and tolerance range are involved. The friction coefficient affects the rate of wear. Wear reduces surface finish and violates tolerances, causing the plastic part to fail to meet design requirements.
2. Cracking Failure
Symptoms and Impacts: Due to the impact of mold opening and closing, cooling shrinkage stress, and material defects, key areas such as the gate and reinforcement ribs are prone to cracking, resulting in flash and missing material in the plastic part, affecting the integrity, functionality, and safety of the part.
Principle Analysis: This is related to stress concentration, thermal expansion coefficient, and fatigue strength. Improper structure leads to stress concentration, causing metamaterials to crack under extreme stress. Large differences in thermal expansion coefficients between different materials lead to uneven contraction during cooling, causing stress cracking. Repeated cycles reaching the fatigue strength limit can also cause cracking.
3. Deformation Failure

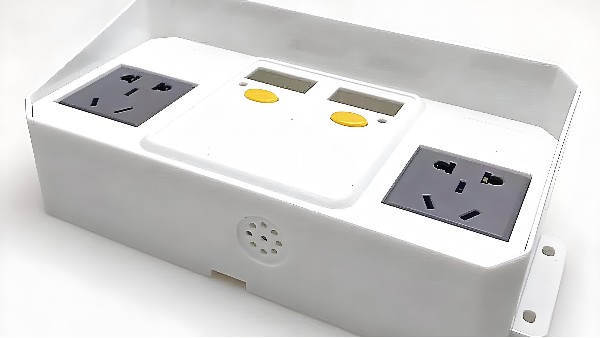

Symptoms and Impacts: Due to uneven cooling systems and improper mold structure, the mold can deform overall or locally, compromising the shape and dimensional accuracy of the plastic part. For example, a deformed charging pile casing can prevent proper installation, affecting its appearance and functionality.
Principle Analysis: Uneven cooling rates can cause thermal stress, insufficient mold rigidity can't withstand external forces, and low heat transfer efficiency can lead to high local temperatures. These factors can all lead to deformation.
4. Stuck Faults
Symptoms and Impacts: During mold opening and closing, ejection, and other operations, jamming can occur due to guide wear, improper clearances, or foreign matter intrusion. This can cause plastic part strain and incomplete ejection, impacting production efficiency and increasing costs.
Principle Analysis: Reduced guide accuracy (guide wear), improper tolerances, and increased friction due to an imperfect lubrication system can all lead to jamming.
III. Repair Methods and Precautions
1. Wear Repair
1.1 Repair Methods
Minor Wear: Use surface treatments such as polishing and chrome plating to restore dimensions and finish.
Severe Wear: Replace the damaged part or repair using laser cladding technology.
1.2 Precautions
Strictly control repair accuracy to ensure that dimensional tolerances and surface parameters meet plastic molding requirements.
2. Crack Repair
2.1 Repair Methods
Minor Cracks: Repair using an appropriate welding process.
Extensive Cracks or Cracks in Key Locations: Replace the inserts and re-calibrate the mold.
2.2 Precautions
Select welding materials and parameters based on the mold material. Perform flaw detection after repair.
Medical Molds
3. Deformation Repair
3.1 Repair Method
Cooling System Issues: Inspect and repair the cooling ducts or adjust the layout.
Mold Structure Issues: Perform partial modifications or overall optimization, and recalculate relevant parameters.
3.2 Precautions
Avoid damaging other parts during operation, and fully consider the requirements of the plastic molding process.
4. Stuck Repair
4.1 Repair Method
Guide Wear: Replace the guide and ensure installation accuracy.
Improper Fitting Clearance: Readjust the fitting tolerance.
Foreign Object Intrusion: Remove foreign objects and implement protective measures.
4.2 Precautions
Lubricate guides after replacement. Adjustment of tolerances requires multiple adjustments. After cleaning, conduct a thorough inspection to ensure protective measures are effective.
IV. Preventive Measures
1. Daily Maintenance: Clean debris after production, lubricate moving parts regularly, and regularly check key parts for wear and deformation.
2. Mold Optimization: Optimize design layout and enhance rigidity and strength; strictly control precision and material quality during manufacturing.
3. Standardized Operation: Observe process parameters and procedures according to regulations to prevent failures.
Charging pile plastic molds are crucial to charging pile production. Understanding common failures, their repair, and implementing preventive measures can ensure mold performance and production quality, improving efficiency. This is of great significance to the development of the charging pile industry and requires the high attention of industry players.
