Why do dents and shrinkage marks appear on injection molded parts? The main reasons for dents and shrinkage marks on injection molded parts are as follows: I. Material Factors 1. High Material Shrinkage Rate Different plastic materials have different shrinkage rates. If a material with a high shrinkage rate is selected, it is prone to significant volume shrinkage during the cooling process after injection molding, leading to dents and shrinkage marks. For example, some crystalline plastics such as polyethylene (PE) and polypropylene (PP) have relatively high shrinkage rates, while non-crystalline plastics such as polystyrene (PS) and polycarbonate (PC) have lower shrinkage rates. When selecting materials, materials with lower shrinkage rates should be chosen according to the specific requirements of the product and the usage environment to reduce the occurrence of dents and shrinkage marks. 2. Poor Flowability Poor flowability of plastic materials can lead to insufficient filling of the mold cavity during injection molding, especially in areas with thick walls or complex structures, easily resulting in material shortages. During cooling, these areas, lacking sufficient material replenishment, will form dents and shrinkage marks. Material flowability can be improved by adjusting the material formulation, adding lubricants, or increasing the processing temperature. For example, adding an appropriate amount of flow aid can reduce the material's viscosity, improve its flowability, and make it easier for the material to fill the mold cavity. II. Mold Factors 1. Inappropriate Gate Size A gate that is too small will restrict the flow rate and volume of the molten plastic, leading to insufficient cavity filling, especially in areas far from the gate, which can easily result in depressions and shrinkage marks. A gate that is too large will cause the molten plastic to generate excessive heat at the gate, causing the material to cool and solidify prematurely, affecting subsequent filling and holding pressure processes, and also easily causing depressions and shrinkage marks. The size and location of the gate should be designed reasonably according to the size, shape, and wall thickness of the injection molded part. Generally speaking, the gate size should be moderate, ensuring smooth flow of the molten plastic while avoiding excessive heat and pressure loss. 2. Uneven Mold Temperature Uneven mold temperature will cause uneven shrinkage of the injection molded part during cooling, resulting in depressions and shrinkage marks. For example, excessively high local temperatures in the mold will cause the molten plastic in that area to cool slowly and shrink significantly; conversely, excessively low local temperatures will cause the molten plastic in that area to cool too quickly and shrink less. Mold temperature uniformity can be improved by optimizing the mold's cooling system. For instance, designing appropriate cooling channels within the mold ensures uniform cooling water flow rate and velocity, maintaining consistent temperature throughout the mold. Additionally, heating elements or oil temperature controllers can be used to heat the mold, further enhancing temperature uniformity. 3. Inappropriate Cavity Design Uneven cavity wall thickness leads to uneven shrinkage of the injection molded part during cooling, resulting in depressions and shrinkage marks. For example, thicker areas shrink more, while thinner areas shrink less, easily causing depressions and shrinkage marks at these thickness variations. When designing the cavity, strive for uniform wall thickness and avoid excessive thickness variations. Simultaneously, improve the surface finish of the cavity and reduce surface roughness to decrease friction and improve material flowability and filling properties. III. Process Factors 1. Insufficient Injection Pressure Insufficient injection pressure leads to incomplete filling of the mold cavity by the molten plastic, especially in areas with thick walls or complex structures, easily resulting in sink marks and depressions. Increasing the injection pressure appropriately increases the flow rate and filling capacity of the molten plastic, ensuring sufficient cavity filling. However, excessive injection pressure can also cause other problems, such as flash and difficulty in demolding. Therefore, the injection pressure should be adjusted reasonably according to the specific situation. 2. Insufficient Cooling Time Insufficient cooling time causes the molded part to be too hot at demolding time, before it is fully solidified. This results in continued shrinkage during the cooling process, producing sink marks and depressions. Appropriately extending the cooling time ensures that the molded part is fully solidified before demolding, reducing shrinkage. However, excessive cooling time will also reduce production efficiency. Therefore, the cooling time should be shortened as much as possible while ensuring product quality. Sink marks and depressions in injection molded parts are the result of the combined effects of multiple factors, including materials, molds, and processes. In actual production, these factors should be comprehensively analyzed according to the specific circumstances, and corresponding measures should be taken to reduce the occurrence of dents and shrinkage marks and improve the quality of injection molded parts.
Shrinkage rates in plastic parts can be a significant concern for manufacturers and consumers alike. If you've ever experienced issues with the fit or functionality of a plastic component, you may have wondered if shrinkage played a role. Understanding the factors that contribute to shrinkage can help you mitigate risks and ensure product quality.
First, let’s address the common pain points. Many users face problems such as parts not fitting together as intended, increased production costs due to rework, and ultimately, dissatisfied customers. These issues often stem from inadequate knowledge of the materials and processes involved in plastic manufacturing.
To tackle shrinkage, I recommend a few key strategies:
Material Selection: Choose materials with low shrinkage rates. Research and select resins that are known for their dimensional stability. This can significantly reduce the likelihood of shrinkage affecting your final product.
Mold Design: Pay close attention to the design of your molds. Ensure that they are optimized for the specific material you are using. Proper venting and cooling channels can help maintain uniform temperatures, reducing the risk of uneven shrinkage.
Processing Conditions: Monitor and control processing parameters such as temperature and pressure. Consistent conditions during injection molding can lead to more predictable shrinkage behavior.
Testing and Prototyping: Implement rigorous testing protocols. Create prototypes and perform shrinkage tests to understand how your specific materials behave under different conditions. This proactive approach can save time and resources in the long run.
Continuous Improvement: Stay informed about advancements in materials and technologies. Regularly review your processes and make adjustments based on new findings and feedback from your production team.
In conclusion, understanding and managing shrinkage rates in plastic parts is crucial for maintaining quality and customer satisfaction. By focusing on material selection, mold design, processing conditions, thorough testing, and continuous improvement, you can significantly reduce the risks associated with shrinkage. Taking these steps not only enhances product performance but also builds trust with your customers, ensuring long-term success.
Shrinkage rates can be a significant concern when it comes to protecting plastic parts. As someone who has encountered the challenges of material shrinkage firsthand, I understand the frustrations it can cause. Whether you're in manufacturing, design, or maintenance, the impact of shrinkage on your plastic components can lead to costly errors and delays.
Many users often find themselves asking: Why does shrinkage happen? What can I do to prevent it? These questions are crucial as they directly affect the quality and longevity of the products we rely on.
To address these issues, let’s break down the solutions step by step:
Understanding Shrinkage: It’s essential to grasp that shrinkage is a natural occurrence in plastic materials as they cool and solidify. Different plastics have varying shrinkage rates, and factors such as temperature and mold design can exacerbate the issue.

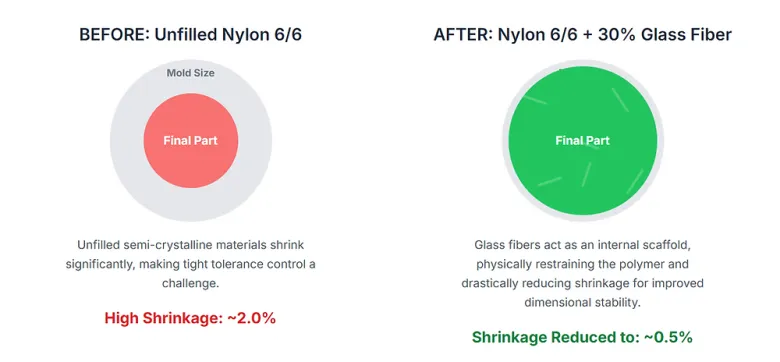

Material Selection: Choosing the right type of plastic for your application is critical. Some materials exhibit lower shrinkage rates than others. For instance, engineering plastics like polycarbonate or nylon may offer better dimensional stability compared to standard polyethylene.
Optimizing Design: The design of your parts plays a vital role in minimizing shrinkage. Incorporating features like uniform wall thickness and appropriate draft angles can significantly reduce stress and warping during the cooling process.
Mold Temperature Control: Maintaining consistent mold temperatures can help manage shrinkage. A heated mold can lead to more uniform cooling, thereby reducing the chances of distortion in your final product.
Post-Processing Techniques: After production, consider methods such as annealing to relieve internal stresses that contribute to shrinkage. This process can help stabilize the dimensions of your plastic parts.
In conclusion, addressing shrinkage rates is not merely about selecting materials; it involves a comprehensive understanding of the entire production process. By taking these steps, you can enhance the quality of your plastic parts and avoid potential pitfalls. Remember, the goal is to create durable, reliable products that meet your expectations and those of your customers.
Plastic shrinkage can be a frustrating challenge in various manufacturing processes. I’ve encountered it countless times, and I know how it can impact product quality and production efficiency. Understanding the root causes and implementing effective strategies is crucial for success.
First, let's identify some common pain points associated with plastic shrinkage. Many manufacturers face issues like dimensional inaccuracies, warping, and surface defects. These problems not only lead to increased waste but also affect customer satisfaction. I’ve seen firsthand how addressing these issues can save time and resources.
To tackle plastic shrinkage, I recommend the following steps:
Material Selection: Choose the right type of plastic for your application. Different materials have varying shrinkage rates. Researching and selecting a material that aligns with your production needs is essential.
Temperature Control: Monitor and control the temperature during the molding process. Both the melt temperature and mold temperature play significant roles in how the plastic behaves. Maintaining optimal temperatures can reduce shrinkage effectively.
Mold Design: Invest time in designing your molds. Proper venting and cooling channels can help manage the cooling rate of the plastic, minimizing shrinkage. I’ve learned that a well-designed mold can make a significant difference in the final product.
Process Optimization: Regularly review and optimize your production process. This includes adjusting cycle times and pressures to ensure that the plastic is processed under ideal conditions. Small tweaks can lead to substantial improvements.
Quality Control: Implement rigorous quality control measures. Regular inspections during and after production can help catch issues early, allowing for timely corrections. This proactive approach can prevent larger problems down the line.
In conclusion, navigating plastic shrinkage requires a combination of careful planning, material selection, and process management. By understanding the factors that contribute to shrinkage and taking proactive steps, manufacturers can enhance product quality and efficiency. I’ve witnessed the positive impact of these strategies in my own work, and I encourage others to adopt them for better results.
Want to learn more? Feel free to contact Kama Liu: sale@hwplasticparts.com/WhatsApp +8615069372818.
