Plastic Enclosure Electronic Box Injection Molding

$0.1-1 /

Contact Now

Brand: HW

Origin: CHINA

Description

Injection Molding plastic panel frame

00:13

Product Description

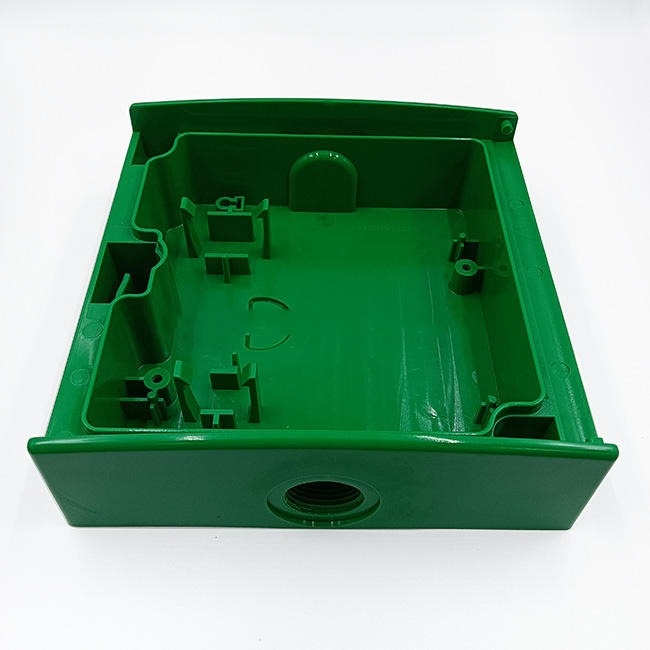

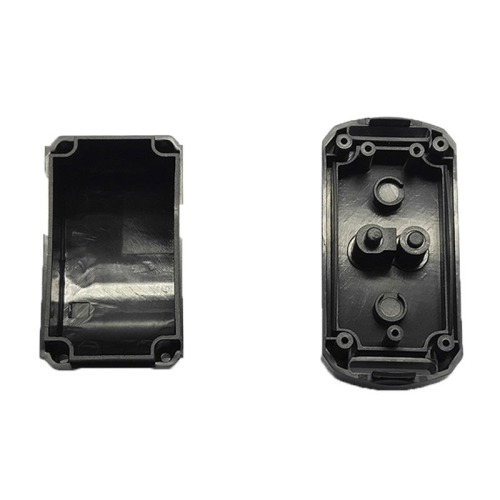

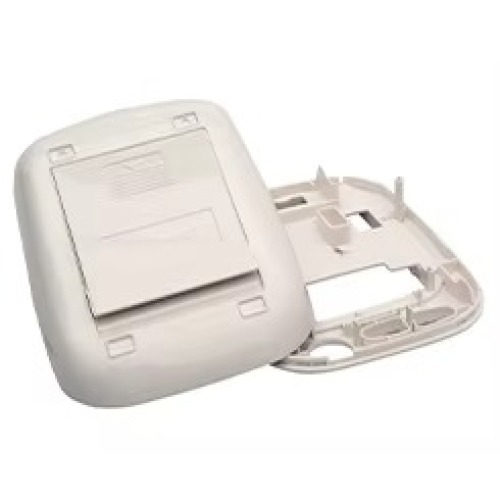

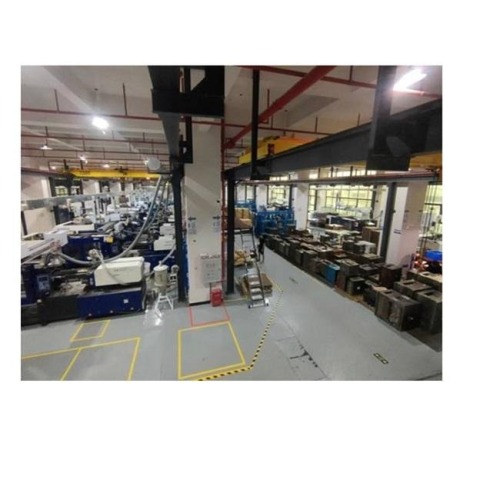

Plastic Enclosure Electronic Box Injection Molding

The plastic enclosure electronic boxes are among the most critical elements for safeguarding circuit boards, sensors, and other electronic parts, while the main manufacturing technique used for producing this kind of product is injection molding, thanks to its efficiency and precise nature.

Core Mold Design Requirements for Electronic Boxes

Compensation for Dimensional Shrinkage: Based on material shrinkage rate (ABS: 0.5%–0.8%; PC: 0.6%–0.9%), make proper compensation on the mold to make sure that the design of the electronic box is suitable for the internal electronic components (such as PCB board, connectors, etc).
Structure of Waterproof and Sealing Design:
Make grooves for rubber gaskets on the box lid or bottom (groove width 2-3mm, groove depth 1-1.5mm) to meet IP65/IP67 waterproof level.
Use interlocking buckles rather than just screw connection to improve the sealing effect and ease assembly.
Optimization of Draft Angle and Demolding: Set draft angle from 1° to 3° for both the inside and outside of the mold to avoid demolding scratches; if it is a deep-cavity electronic box, adopt core pulling mechanism to facilitate demolding of the complicated structure (such as threaded hole, ribs, etc).
Design of Gating System: Adopt submarine gate or edge gate to prevent appearance defects; for large-sized electronic box, use multi-gate injection molding to improve melt filling and internal stress.
Cooling Channel Design: Ensure even placement of cooling water channels around the cavity mold (from cavity surface 10-15mm) to provide even cooling, prevent warpage, sink marks, and improve process efficiency (10%-20% reduction in cycle time).

HUIWEN MAIN PRODUCTS:

Plastic shell /case /Cover/ Enclosure
Plastic base
Please box
Plastic frame...

Talk to us! Put us to the test!

Application Scenarios

Consumer electronics: router enclosures, adapter cases, smart home control enclosures.
Industrial control: PLC enclosures, sensor junction boxes, industrial instruments enclosures.
Outdoor electronics: monitoring camera enclosures, solar controller enclosures, communication base station enclosures.
Automotive electronics: vehicle control unit enclosures, BMS enclosures.
