In modern injection molding production, mold defects leading to high product defect rates, material waste, and production stoppages are common pain points in the industry. Industry statistics show that molds without mold flow analysis optimization have an initial trial pass rate of only 40%-50%, while common defects directly reduce production efficiency by more than 30%. Mold flow analysis, based on computational fluid dynamics (CFD) and thermodynamics principles, can accurately simulate the entire flow of molten plastic in the mold cavity, providing a scientific basis for mold design and process adjustment. Spline testing molds are the key carriers for verifying the analysis results; the combination of the two constitutes the core system for defect control.
I. Common Injection Mold Defects and Their Impact on Production
1. Common Defect Types
Typical defects in injection mold production include flash, short shots, bubbles, warpage, weld lines, and shrinkage marks. Flash occurs in up to 60% of thin-walled products, weld lines are common in complex cavity products, and warpage is particularly prominent in engineering plastics such as ABS and PC.
2. Impact on Production Efficiency and Product Quality
Flashing leads to a rework rate of approximately 15%-20%, with an average rework time of 3-5 minutes per piece; short shots cause material loss accounting for 8%-12%; warped and deformed products have a scrap rate as high as 25%. Furthermore, mold downtime for defect handling accounts for 20%-25% of total production time, severely restricting capacity.
II. Basic Principles and Key Data of Mold Flow Analysis
1. Basic Principles of Mold Flow Analysis
By establishing a 3D model of the mold and a plastic material database, the entire process of melt flow from injection to cooling and solidification is simulated. Numerical calculations are used to reconstruct the temperature, pressure, and velocity field distributions, predicting the location and cause of defects.
2. Interpretation of Key Data Indicators
Core data indicators include flow time, pressure distribution, temperature distribution, shear rate, and curing time. The flow time difference should be controlled within ±0.3s, the maximum injection pressure of the cavity should be lower than 85% of the allowable pressure of the mold (the allowable pressure of general engineering plastic molds is 150-200MPa), the temperature distribution uniformity error should be ≤5℃, the shear rate should be controlled between 1000-5000s⁻¹, and the curing time should usually account for 70%-80% of the total cooling time.
III. Core Methods for Optimizing Injection Mold Defects through Mold Flow Analysis
1. Gate Design Optimization
(1) Gate Location Determination: Based on melt flow path simulation, the gate should be located at the farthest point of melt flow in the cavity or at the point of maximum wall thickness, avoiding critical stress areas of the product. The number of gates for a single cavity product is usually 1-2.
(2) Gate Size Optimization: Based on material flowability and product weight calculations, the gate diameter for small PP products is 0.8-1.2mm, and for large products it is 1.5-2.5mm.
2. Runner System Optimization
(1) Runner Layout Design: A balanced layout is preferred to ensure consistent melt flow distance and pressure loss across cavities. Runner length differences are controlled within 5%. The main runner diameter is 1-2 mm larger than the secondary runner diameter, and the secondary runner diameter is 4-8 mm.
(2) Runner Size Optimization: Ensure melt pressure loss within the runner is ≤30 MPa, reducing the filling time difference in multi-cavity molds to within 0.2 s.
3. Cooling System Optimization
(1) Cooling Water Channel Design: Following the principle of "close to the cavity and uniformly distributed," the distance between the water channel and the cavity surface is 15-25 mm, with a spacing of 25-35 mm. For complex curved surface molds, a conformal water channel design is adopted, improving cooling uniformity by over 40%.
(2) Cooling medium selection: For ordinary products, use industrial cooling water (temperature 20-25℃), flow rate 1.5-2.5m/s; for engineering plastics or thick-walled products, use ice water cooling (temperature 5-10℃), mold surface temperature fluctuation ≤3℃.
4. Injection molding process parameter optimization
(1) Injection pressure and speed: Set the injection pressure to 1.1-1.2 times the maximum cavity pressure, using segmented speeds: initial filling 30-50mm/s, middle filling 60-100mm/s, final filling 20-40mm/s.
(2) Holding pressure and time: Holding pressure is 60%-80% of the injection pressure. Holding time is determined according to the product wall thickness; for every 1mm increase in wall thickness, the holding time is extended by 1-1.5s.
(3) Molding Temperature: The barrel temperature should be 20-40℃ higher than the melting point of the plastic (200-240℃ for ABS, 260-300℃ for PC); for mold temperature, 40-80℃ for crystalline plastics and 60-120℃ for amorphous plastics.
IV. Application of Spline Testing Molds in Mold Flow Analysis
1. Overview of Spline Testing Molds
Standard molds specifically designed to verify mold flow analysis results. They use ISO 527-2 standard tensile spline dimensions (170mm×15mm×4mm), have single-cavity or multi-cavity designs, and are equipped with standard gates, runners, and cooling systems. The consistency between the material molding performance and the analysis data is tested by producing standard splines.
2. Design Considerations for Spline Testing Molds
The core material should preferably be S136 or H13 mold steel, with a hardness of HRC50-55 after heat treatment; the cavity surface roughness Ra≤0.8μm; the demolding system should use a combination of ejector pins and ejector plates, with ejector pin diameters of 2-3mm and spacing of 30-40mm; a pre-drilled hole for a temperature sensor should be provided to monitor the cavity temperature in real time.
3. The Role of Spline Testing in Mold Flow Analysis
It acts as a "calibrator" for the analysis results, correcting model parameters by comparing simulation and measured data. For example, if mold flow analysis predicts a spline warpage of 0.5mm, while the measured warpage is 0.52mm, adjustments can reduce the error to within ±3%. It also allows for early verification of process parameters, such as testing the weld line strength of the spline at different injection speeds to determine the optimal process range.
V. Case Study Analysis

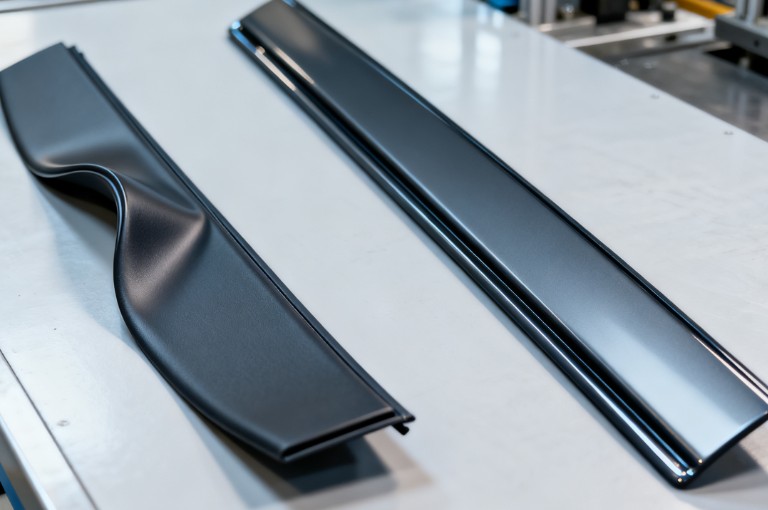

A company uses ABS material to produce automotive door panel trim strips. The first trial molding resulted in severe weld lines and warpage deformation, with a defect rate of 12%. Mold flow analysis revealed that the original mold's single-gate design resulted in an excessively long melt filling path, and uneven cooling water distribution led to a cavity temperature difference of up to 8°C.
Optimization: An auxiliary gate was added, employing a balanced runner system; the cooling water channel spacing was adjusted to 30mm, and two conformal cooling channels were added; spline testing showed that the weld line tensile strength increased from 18MPa to 25MPa, and warpage decreased from 0.8mm to 0.3mm.
After applying the optimized solution, the product weld line strength met the standards, warpage was controllable, the defect rate decreased to 2.5%, production efficiency increased by 28%, and material loss per batch decreased by 10%.
Hongrenweier is the premier choice for injection molds.
VI. Development Trends of Mold Flow Analysis Technology
1. Integration with AI and Big Data
Moving towards intelligent development, AI algorithms automatically identify design defects and parameter optimization space. Combined with big data, models achieve self-learning and self-calibration. Some systems can complete the entire process analysis of complex molds within 10 minutes, improving efficiency by more than 50%.
2. Multiphysics Coupled Simulation
Strengthening the coupled analysis of flow field, temperature field, and stress field, simulating the interaction between melt flow and mold structure deformation, and combining with software co-simulation, achieving full-chain digital verification from design to performance prediction.
Mold flow analysis is the core technology for defect optimization in injection molds. Spline testing improves the reliability of optimization solutions. By optimizing design and processes, combined with spline testing verification, the defect incidence rate can be significantly reduced, and the first trial mold pass rate can be improved. With the development of technological integration, mold flow analysis will play a greater role in the field of precision injection molding, driving the industry towards high efficiency, precision, and intelligence. Establishing a closed-loop system of "mold flow analysis - spline testing - mold optimization" is key to enhancing enterprise competitiveness.
