Plastic electroplating is widely used in numerous industries and is of great significance for improving product performance. However, adhesion, uniformity, and environmental protection and energy consumption are prominent issues in electroplating. This article will explore innovative breakthroughs to promote green and sustainable electroplating while ensuring quality and efficiency.

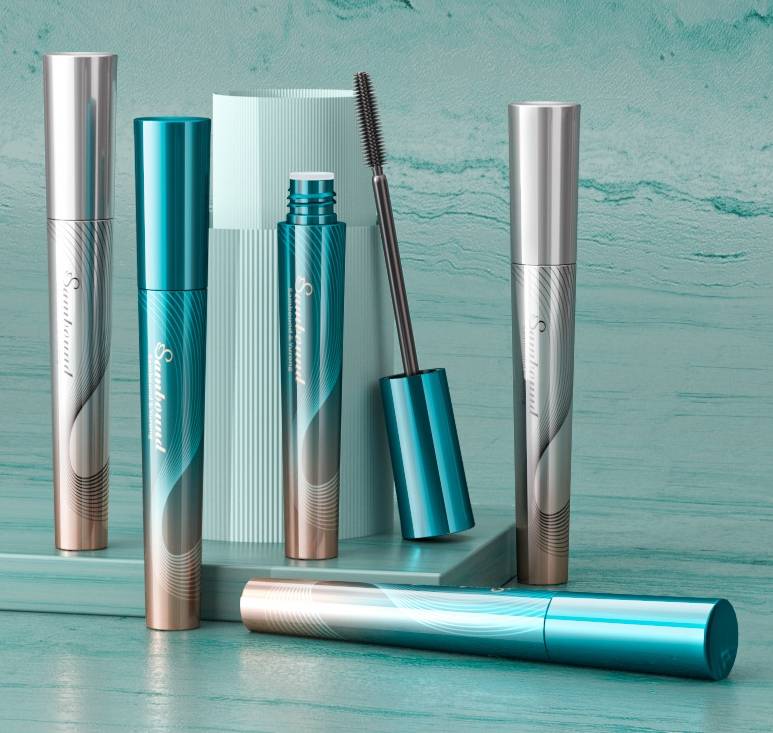

Electroplating-1
I. Improving Adhesion: A Strong Bond Between Plastic and Metal Coatings
1. Adhesion Challenges
Plastic and metal coatings are very different materials. Plastic has low surface energy and is chemically inert, while metal coatings are highly reactive. This difference results in weak affinity between the two, creating challenges in bonding. For example, in the electroplating of automotive interior parts, poor adhesion can easily cause the coating to flake, affecting both appearance and lifespan.
2. The Role of Primer
Improving adhesion is crucial in plastic electroplating. The use of primer plays a key role in strengthening the adhesion between the plastic and the metal coating. Primer improves the wettability of the plastic surface, allowing the plating solution to spread evenly. It has excellent compatibility with plastics and coatings, enhancing adhesion through chemical bonding or physical adsorption.
3. Special Surface Treatment Technologies
Plasma Treatment
Plasma is generated, and its high-energy particles collide with the plastic surface, removing contaminants and weak boundary layers, introducing polar functional groups, and increasing surface energy and chemical bonding. For example, this treatment improves the adhesion of the coating on plastic lamp housings, ensuring long-term durability.
Laser Treatment
A high-energy-density laser beam heats and modifies the plastic surface, creating a concave-convex structure that increases roughness, changes the chemical composition, and enhances mechanical and chemical bonding strength. For example, laser-treated plastic gears, followed by electroplating, resist detachment under mechanical loads, improving lifespan and performance.
4. Case Study
In the production of electroplated automotive interior parts, the original process exhibited poor coating adhesion and peeling during high-temperature, high-humidity testing. After introducing a primer and plasma composite process, the pass rate increased from 70% to over 95%, significantly improving product quality and competitiveness, demonstrating the effectiveness of this technology in improving adhesion.
II. Uniformity and Thickness Control: Ensuring the Quality of the Electroplated Layer
1. The Importance of Uniformity in Plastic Electroplating
The uniformity of the electroplated layer is crucial to the aesthetics and functionality of the plated component. Appearance-wise, consistent color and gloss are crucial to meet high-quality requirements. Functionally, uneven coatings can affect performance, such as in electromagnetic shielding components for electronic equipment.
2. Analysis of Factors Affecting the Uniformity and Thickness of Plastic Electroplating
Current Density
Uneven current density causes rapid ion deposition and thicker coatings in areas with strong electric fields, while the opposite occurs in areas with weak electric fields, affecting uniformity. For example, when electroplating complex plastic workpieces, convex areas and edges tend to be thicker, while concave areas tend to be thinner.
Electroplating Time
The length of the electroplating time directly determines the thickness of the coating. Improper control of the electroplating time can affect the coating growth rate due to factors such as current distribution, resulting in inconsistent thickness. Excessive electroplating time exacerbates unevenness, while too short a time can affect functionality.
Electrolyte Temperature
Electrolyte temperature affects ion diffusion and reaction rates. Uneven electrolyte temperature can lead to different reaction rates in different areas, disrupting plating uniformity. This can be seen, for example, in large plating tanks, where temperature differences can affect the plating process.
3. Plating Thickness Control Technology
Pulse Plating
Pulse plating periodically varies the current density, allowing for rapid deposition during the on-time and ion diffusion recovery during the off-time. This reduces concentration polarization and allows for precise control of plating thickness. For example, after plating plastic circuit boards, plating uniformity between circuits is improved.
Intelligent Plating System
Sensors monitor parameters in real time, and algorithms and control systems adjust according to preset settings. If current density anomalies are detected, automatic adjustments are made to ensure uniform plating thickness, such as in the plating of automotive parts. This improves quality stability and reduces scrap rates.
4. Practical Applications
A factory was plating plastic housings. Conventional processes resulted in large variations in plating thickness (±5μm), impacting both appearance and electromagnetic shielding performance. After optimizing the use of pulse plating and intelligent plating systems, the deviation is controlled within ± 1μm, the appearance is improved, and the electromagnetic shielding pass rate has increased from 80% to 98%, demonstrating the effectiveness of the technology and contributing to the development of the industry.
III. Environmental Protection and Energy Consumption: Green Transformation of the Electroplating Industry
1. Environmental Issues in the Electroplating Process
Electroplating produces wastewater (containing heavy metals, etc.), waste gas (such as acid mist), and waste residue (such as heavy metal precipitates), which pollute water, air, and soil, harming the ecology and health. Traditional processes also consume a lot of energy.
2. Wastewater Treatment Technologies
Chemical precipitation: Chemical precipitation separates heavy metal ions by adding chemicals. This method is simple to operate and low-cost, but it produces a lot of sludge and poorly removes complexed heavy metal ions.
Membrane separation: Using semipermeable membranes for separation offers good results, pure effluent, and resource recovery, but it requires high investment and costs, and the membrane is prone to fouling and clogging.
Biological treatment: Relying on microbial metabolism to eliminate harmful substances is low-cost and pollution-free, but it requires a long cycle, high requirements, and unstable results.
3. Green Electroplating Technology
Cyanide-free electroplating: Using non-toxic chelating agents to replace cyanide reduces toxicity at the source, improves environmental and personnel conditions, and promotes green development in the electroplating industry.
Trivalent chromium electroplating: Low toxicity, reduces chromium pollution, and provides high-performance coatings, but thickness is limited, requiring process improvements.
Low-energy electroplating: Pulse plating, for example, reduces energy consumption, while optimizing equipment and parameters also saves energy, contributing to the sustainable development of the electroplating industry.
4. Industry Practice
A company previously faced significant environmental and energy consumption issues with its traditional process. They subsequently introduced green technology, cyanide-free trivalent chromium electroplating. They used a combined precipitation membrane separation process for wastewater treatment, achieving compliance with standards and recycling water. Furthermore, they used low-energy technologies to reduce energy consumption by 30%, lowering costs and becoming a model for green transformation in the electroplating industry.
