In industries such as 3C electronics, medical devices, and automotive precision components, the application of complex structural parts is becoming increasingly widespread. Their molding process faces challenges such as complex cavities, uneven wall thickness, high dimensional accuracy requirements, and difficulty in controlling mass production stability. Hot runner precision injection molds, with their core advantages of efficient temperature control, waste-free runners, and uniform filling, have become a key technical solution for solving the molding problems of complex parts. Spline testing molds, as the core carrier for early process verification and parameter optimization, can significantly reduce mass production risks and improve molding consistency, making them an important prerequisite for the practical application of hot runner precision injection molds.
I. The Core Logic of Hot Runner Precision Injection Molds for Complex Part Molding
1. Analysis of the Core Pain Points in Complex Part Molding
Complex parts generally possess characteristics such as irregular cavity structures, deep cavities and thin walls, strict requirements for critical dimensional tolerances (typically ≤±0.02mm), and flawless surface quality (Ra≤0.03μm). Traditional cold runner injection molds are prone to problems such as insufficient melt filling, large pressure loss, obvious weld lines, and uneven shrinkage deformation during molding. Furthermore, the waste material ratio in the runner reaches 15%-25%, which does not meet the requirements of efficient mass production and cost control. Especially in the molding of micro-complex parts (minimum feature size ≤ 0.5mm) or multi-cavity molding scenarios, cold runner technology struggles to meet the uniform filling requirements of each cavity.
2. Core Adaptation Advantages of Hot Runner Technology
Hot runner systems, through continuous temperature control of the main runner, branch runners, and gates, keep the melt in a molten state within the runner, fundamentally solving the inherent defects of traditional cold runners. Its core advantages are reflected in three aspects: First, there is no waste material in the runner, increasing material utilization to over 98% and reducing production costs; second, melt filling pressure loss is reduced by 30%-40%, effectively solving the filling problems of deep cavities and irregularly shaped cavities; third, temperature control accuracy can reach ±0.5℃, ensuring stable melt flow and improving part dimensional consistency and surface quality. 3. Matching Principles of Core Technical Parameters
The parameter matching of hot runner precision injection molds directly determines the molding effect and must follow the synergistic logic of "part characteristics - mold parameters - process parameters". Key matching parameters include: the hot runner nozzle temperature must be 15-30℃ higher than the plastic melting point to avoid melt solidification or degradation; the manifold temperature control difference must be ≤1℃ to ensure uniform filling of multiple cavities; the gate size must be optimized according to the part wall thickness and melt flowability, typically 0.8-1.2 times the minimum part wall thickness; the injection pressure must be 10%-15% higher than that of traditional cold runner molds to compensate for the flow resistance caused by complex cavities.
II. The Key Role of Spline Test Molds in the Molding of Complex Parts
1. Core Design Considerations for Spline Test Molds

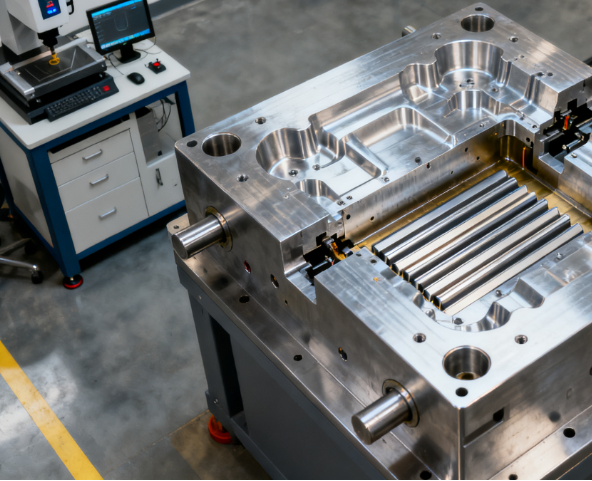

As a core tool for process verification, the design of spline test molds must accurately replicate the key features of mass production molds while possessing the flexibility for parameter adjustment. The mold structure employs a composite design of "standard spline + simulated cavity." The standard spline is an ISO standard tensile spline (such as ISO 527-2 Type 1A), while the simulated cavity replicates the core irregular structure and wall thickness gradients of complex parts. The mold cavity material is S136 pre-hardened steel (hardness HRC 48-52) to ensure wear resistance and dimensional stability. The hot runner system is equipped with a needle valve gate, supporting independent temperature control and on/off timing adjustment.
2. Core Items and Data Applications of Spline Testing
The core objective of spline testing is to optimize process parameters and verify the rationality of mold design. Key test items and data applications are as follows:
Dimensional Accuracy Testing: Key dimensions of the spline are measured using a coordinate measuring machine (CMM) to ensure tolerances are controlled within ±0.01mm. Simultaneously, the molding capability of the simulated cavity for complex parts is verified. If the deviation exceeds 0.005mm, the hot runner temperature or injection pressure is adjusted.
Mechanical Property Testing: The tensile strength and elongation at break of the spline are tested to ensure compliance with part usage requirements (e.g., tensile strength ≥50MPa for 3C parts), avoiding performance degradation due to melt degradation or insufficient filling.
Surface Quality Inspection: The surface roughness (Ra) value of the spline is measured using a surface roughness meter. Visual inspection is combined with the absence of defects such as shrinkage marks and weld lines. The surface condition of the molded part in the simulated cavity is observed simultaneously to optimize the gate location and runner layout.
Stability Testing: Continuous production of 500... The pattern strip, with a statistical dimensional fluctuation range of ≤±0.003mm, ensures a stable process window and provides reliable parameter data for mass production.
3. Linked Optimization of Spline Testing and Mass Production Molds
The core value of the spline testing mold lies in providing precise parameter support for the mass production mold, forming a closed loop of "testing - optimization - verification". After determining the optimal process parameters (such as melt temperature, injection speed, holding pressure, and hot runner temperature control curve) through spline testing, they are directly transferred to the mass production mold and fine-tuned according to the part's initial condition during mass production. For complex parts with irregular shapes, if insufficient filling is found during spline testing, adjustments can be made by enlarging the hot runner gate size and optimizing the manifold layout. The optimization effect is then verified through spline testing, avoiding delays in the production cycle caused by mold modifications during mass production.
III. Hot Runner System Optimization Scheme for Complex Part Molding
1. Customized Hot Runner Structure Design
Based on the cavity layout and structural characteristics of complex parts, a customized hot runner system is designed:
Multi-cavity molding scenarios: A balanced manifold design is adopted, with a runner length deviation ≤5mm, ensuring a melt filling time difference of ≤0.2s between cavities, suitable for high-efficiency mass production requirements of 16 cavities and above;
Deep cavity/irregularly shaped parts: An extended needle valve nozzle is configured, with the nozzle tip temperature 5-10℃ higher than the main runner, preventing melt solidification at the gate. The nozzle head shape is also optimized to reduce interference with the cavity;
Miniature complex parts: A miniature hot runner system is selected, with nozzle diameters as low as 1.2mm and gate sizes as small as 0.3mm. Combined with a high-precision temperature sensor (response time ≤0.1s), precise temperature control is achieved.
2. Intelligent Upgrade of Temperature Control System
Current hot runner temperature control has evolved from traditional manual adjustment to intelligent adaptive control. Core optimization directions include:
Employing a PID adaptive temperature control algorithm to adjust heating power in real time based on melt temperature feedback, improving temperature control accuracy to ±0.3℃ and reducing the impact of ambient temperature fluctuations on molding;
Configuring independent temperature control modules for different zones: Independent temperature control units are set for the main runner, manifold, and nozzles, enabling differentiated temperature control for different areas of complex parts;
Adding a temperature anomaly warning function: when the temperature deviation in a certain area exceeds ±1℃, the system alarms in real time and suspends injection molding to prevent part scrap or mold damage due to temperature runaway.
3. Synergistic Application of Runner Balancing and Filling Simulation
Utilizing CAE injection molding simulation technology, runner balancing analysis and filling process simulation are completed during the mold design stage:
By simulating the flow state of the melt in the hot runner and cavity, the diameter and length of the manifold runner are optimized to ensure uniform filling pressure in each cavity (pressure difference ≤ 5MPa);
For areas with uneven wall thickness in complex parts, the filling effect of different gate locations is simulated to determine the optimal number and distribution of gates, reducing the number of weld lines (usually controlled to within 2);
Simulation parameters are corrected by combining spline test data, improving the fit between simulation results and actual production, and reducing mold modification costs.
Hongrenweier is the top choice for injection molds.
IV. Technological Trends and Key Points for Production Implementation
1. Technological Development Trends of Hot Runner Precision Injection Molds
Current industry technological trends focus on "precision, intelligence, and environmental protection": In terms of precision, the machining accuracy of hot runner parts has been improved to ±0.002mm, supporting more stringent part molding requirements; in terms of intelligence, hot runner systems with integrated sensors can collect data such as temperature and pressure in real time, enabling remote monitoring and parameter optimization through industrial internet platforms; in terms of environmental protection, the compatibility technology of low-energy heating elements (energy consumption reduced by 20%-30%) and biodegradable plastics is becoming increasingly mature, meeting the needs of green production.
2. Key Control Points for Production Implementation
Material Compatibility: Adjust the hot runner temperature range and injection molding process according to the melt temperature and flow parameters of the plastics used in complex parts (such as PC, PA66+GF, PEEK, etc.). For example, the hot runner temperature for PEEK material needs to be controlled between 380-400℃.
Mold Maintenance: The hot runner system needs to be cleaned regularly to remove residual melt and prevent carbon buildup from affecting flow. The inspection cycle for heating elements and sensors should not exceed 1000 mold cycles to ensure stable performance.
Process Window Stability: During mass production, the fluctuation range of process parameters needs to be controlled within ±5%. Establish contingency plans for parameter deviations based on spline testing. When the deviation of critical dimensions approaches the upper limit, automatically adjust the hot runner temperature or holding time.
3. Continuous Optimization Directions for Spline Testing Molds
Spline testing molds need continuous upgrades to keep pace with part requirements and technological advancements: First, they should incorporate multi-material compatibility designs to support rapid switching between various plastics for testing; second, they should integrate online detection modules to achieve real-time monitoring of spline dimensions and surface quality, improving testing efficiency; and third, they should adapt to CAE simulation parameters through reverse iteration, optimizing simulation algorithms using test data to further shorten mold development cycles.
This discussion, encompassing the core technologies of hot runner precision injection molds, the application of spline testing molds, system optimization solutions, and key points for production implementation, forms a comprehensive solution for complex part molding, covering the entire process from design to testing to mass production. Through the synergy of hot runner technology and spline testing, the challenges of precision, stability, and efficiency in complex part molding can be effectively addressed, aligning with the current industry's core needs for precision manufacturing.
